Industrial Drop Forged Scraper Chain for Transmission

Name: Industrial Drop Forged Scraper Chain for Transmission
Brand: china-castingforging.com
SKU: 765705235
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Changzhou Dongwu Chain Transmission Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	forging chain
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality Warranty:	1-2 Years
Leading Time:	45 Days
Technology Standards:	According to Drawing Approved by Customer
Samples:	Free
Chain Size:	Available on Request

Product Description

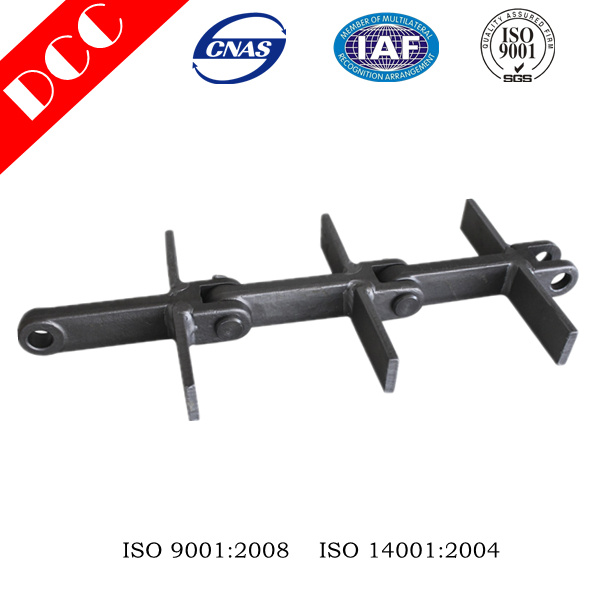

Forged Fork Link Chain

This range of conveyor or transmission chain is designed with fork-style link plate. The chain plates are firstly forged, then processed by drilling and milling machines, and finally connected together by pins. The forged fork link chain features simple structure, and high tensile strength.

With equal-strength design, this forged chain is able to ensure maximized service life of entire transmission or conveying system. As compared with other styles of transmission or conveyor chain with the same tensile strength and same pitch, our forged fork link chain comes with lighter weight.

To suit varied application demands, we can offer forged chains with pitch options between 101.6 and 200mm, and weight options between 9.8 and 12.9kg/m.

-----------------------------------------------------------------------------------------------------------------------------------------------

Technical Specifications

Chain No.	Pitch P (mm)	Tensile strength Q (min) (KN)	Weight per meter q (kg/m)
YD101	101.60	186	9.8
YD101	101.60	186	9.8
YD120	120.20	190	9.8
YD142	142.00	224	10.4
YD150	150.00	264	10.8
YD152	152.40	264	10.8
YD153	153.67	264	10.8
YD200	200.00	310	12.9

Related Names
Pin Linked Chain | Molded Steel Chain | Lightweight Lifting Chain

The chain & sprocket kit makes for a simple but extremely effective combination. These components are an integral part of logistic equipment, material handling equipment, and other types of automated mechanical assemblies. Renowned for durability and dependability, DONGWU can provide prospective customers with outstanding chain transmission solutions.

As an experienced Chinese transmission chain manufacturer, we offer a wide variety of products including the engineering class roller chain, conveyor chain, elevator chain, drop forged chain, welded steel chain, and sprockets. Also available are specialized chains for sugar and palm oil industries. The strong engineering capacity of DONGWU has assisted many a client with the effective design of unique products. Custom orders with pre-attached drawings and samples can be accommodated. We will formulate corresponding blueprints and await the manufacturing confirmation. Fact-more than 40% of our annual production value can be attributed to custom products with non-standard specifications.

Incorporated in 2000, we have since made significant strides in the improvement of manufacturing techniques. A complete corporate management system allows us to effectively recruit new talents while developing new types of engineering and conveyor chains. Through progressive advancement, we have emerged as the leading designer and manufacturer of nonstandard conveyor chains in mainland China. Our excellent reputation has allowed us to gain entry into the National Chain Transmission Standardizing Technology Committee of China.
