| Prod Model: |
CF-029 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Manmade Wooden Case or Pallet |
| Certificate: |
ISO 9001 |
| Production Capability: |
1500ton/Month |
| Origin Place: |
Qingdao China |
| Brand: |
Chifine |
| Product: |

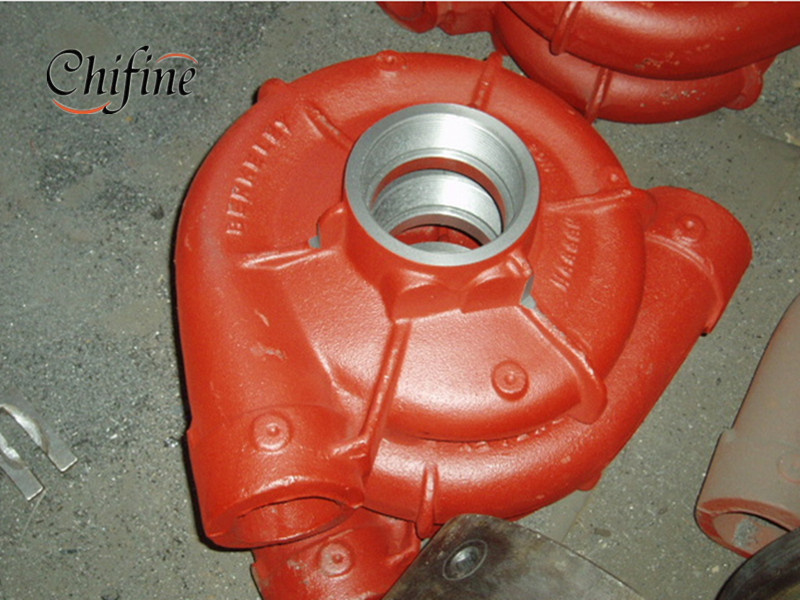

Brass Sand Casting |
| Surface Finish Process: |
Polishing, Sand Blasting, Heat Treatment |
| Service: |
30 Days After Receiving The Payment |
| Machining Type: |
CNC Turning Milling Drilling Lathe |
| Heat Treatment: |
Anealling ,Quenching ,Normalizing ,Tempering |
| Type: |
Clay Wet Sand |
| Application: |
Pump Part |
Product Description
Specifications
1) Material: QT400-QT700/HT150-HT350 A380
2) Standard: JIS, DIN, ASTM, BS etc
3) Process: sand casting/CNC machining/zinc/painting
4) Pump BodyWeight: 0.3KG-50KG
5) OEM service is available
6)Surface finish process: Blacking/polishing/anodize/chrome/plating/zinc plating/nickel plating,tinting,etc.
7)Standard: JIS,ASTM,DIN,BS,etc.
8)Precision machining: CNC machine, milling machine, machining center,drilling machine, cutting machine, grinding machine,tipping machine,etc.
9)Inspection:Responsibility,strict attitude and test strictly according to customer's requirement untill meet your needs.
Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
OEM AND CUSTOMIZED SERVICE
1. Quality guarantee
Chemical checking
Mechanical testing after heat treatment
Dimension inspected
2. Quality document
Full Q. A document as per client request
3. Packing and Shipping
Standard export package(carton/wooden case/pallet)
Accept FOB, FAS, CNF, CIF door to door etc. Or customer designated shipping agent.
4. Service
Drawing: We can translate your original drawing, offer best suggestion on design.
Quality: We have full set quality control system to guarantee the best quality.
5. Inspection
Inspect in house, all our products must be checked 3 times before packing;
Third party inspection is available upon requirement
| material | grey cast iron, ductile cast iron, steel, stainless steel, brass, copper, bronze, aluminum, zinc etc |
| process | sand casting, precision casting ,die casting |
| Surface finishment | polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing. |
| certificate | ISO9001 |
| Service | OEM service available |
| Main export market | Eastern Europe
Western Europe
North America
Mid Africa
Central America
Asia
Australia |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
