| Prod Model: |
W24YPC-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

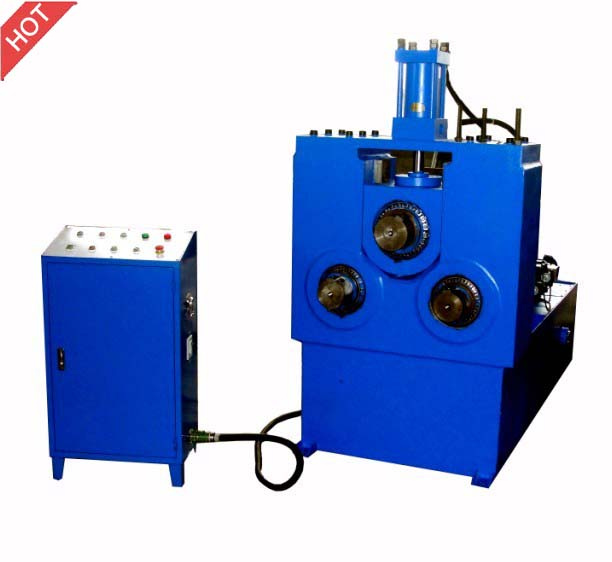

This profile pipe bending machine is hydraulic driven; High bending accuracy; The profile or section or pipe bending rolling machine is also rolling machine. Roll profiles or pipes no wrinkles, no cracks; Low noise, easy operation; German technology, favorable price. It can also bend or roll square tubes or pipes, flat bar, U or channel steel, H steel, round bar, angle bar steel, and so on..
DEXI section bending machine is suitable for all types of section bending and reach up to W24YPC-550, powerful section bending machine in the world. The three bending shafts are journalled in heavy duty ball bearings
1. Heavy duty machines designed for all types of section bending
2. Machines are optimized for bending I, U and H beams the hard way
3. Three rollers are drived by three independent hydraulic motors
4. Display shown clearly, operation convenient.
5. Advanced and safe arc descending structure is adopted. Two down rollers go up and down in arc;
6. Machine-bed reinforcement design; Strength and rigidity guaranteed, no permanent distortion any more. Machine-bed extension for longer parts.
|
Parameter Name |
Parameter value |
Unit |
|
Max Section Modulus |
cm^3 |
45 |
|
Section yield strength |
Mpa |
250 |
|
Max Section |
mm |
80*6 |
|
Min Bending D |
mm |
800 |
|
Hydraulic System Working Pressure |
KW |
<=12 |
|
Oil pump Rating |
KW |
16 |
|
Motor rating |
KW |
11 |
|
Length |
mm |
1800 |
|
Width |
mm |
1600 |
|
Height |
mm |
1500 |
|
Weight |
T |
About 1 |
We are a manufacturer, specialized in producing pipe benders and profile bending machines. We bring in Italian and German technology to manufacture high quality pipe benders and pipe rolling machine. We bend pipes from OD 38mm to 550mm in use of pipe benders. We bend a great number kinds of profiles in use of profile rolling machines, such as angle steel, U-steel, flat bar steel, round pipe steel, square steel, channel steel, I-iron, H-iron, plastic pipes and so on. We manufacture CNC, NC, PLC pipe benders and section bending machines. We are making every efforts to manufacture more and more high quality and good price products!
Dexi occupies 20, 000 square meters workshop and office place. Customers can have samples of their products tested in-house to insure the highest quality results.
Based on the advanced international management mode, the company brings in German machinery production technology and pay more attention to the machine designs and quality of raw materials. The company aims to manufacture the most advanced, durable and stabler pipe benders and bending machines at home and abroad.
The company makes efforts to manufacture machine tools to bend a great number of pipes such as round pipes, square pipes, special-shaped steel pipes, square steel pipes, stainless steel pipes, aluminum pipes, copper pipes, angle steel, flat steel, channel steel, I beam and other nonferrous metal pipes.
Dexi machines sell well at home and some foreign countries and get widely praised from our customers. We not only manufacture and provide high quality products, but also we have golden service after selling. A customer buying our machines means he enjoys the life-long after-selling service.
Our products such as type CNC, NC, PLC hydraulic pipe benders and profile bending machines are widely used in several fields such as aviation, shipbuilding, boilers, road and bridge, construction, automobiles, refrigiration, furniture and so on.
