Product Description

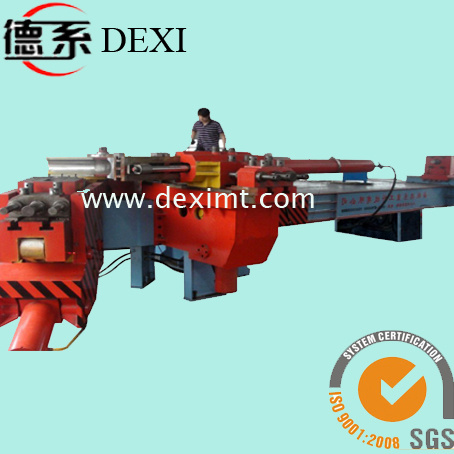

This pipe and tube bender is hydraulic driven; High bending accuracy; The pipe and tube bending machine bend pipes no wrinkles, no cracks; Low noise, easy operation; German technology, favorable price. It can also bend square tubes or pipes, flat bar, U or channel steel, H steel, round bar, angle bar steel, etc
1. Machine-bed reinforcement design; Strength and rigidity guaranteed, no permanent distortion any more. Machine-bed extension for longer parts.
2. The main axis and transmission chainwheel are casted, processed, hopped together, strengthend structure. Double hydra-cylinder design, reset fast.
3. Throttle buffer design, reset and bend in precision and efficiency, DEXI patent.
4. Four connecting rods design, load and unload easier.
5. Full hydraulic drived: Hydraulic clamp, hydraulic press, hydraulic pipe bending.
6. LCD control panel, separate and moveable; PLC controlled, quiet&stable operation; Pedal switch for operator convenience.
7. Special accessories provided, eg. Crease-resist device, hydraulic auxiliary device, multi-ball mandrel.
8. DEXI service assurance.
|
NO. |
Parameter Name |
Parameter |
Unit |
Remarks |
|
1 |
Max torque |
320000 |
N. m |
Equal to φ 219× 12× R650(3D) |
|
2 |
Max bend pipe OD *WT |
Φ 219× 12 |
mm |
QS=250MPA(equal to 20 steel quenching state) |
|
3 |
Min bend pipe od |
Φ 60 |
mm |
Special dies can bend smaller outside diameter pipe |
|
4 |
Min bend radius |
R200 |
mm |
Special clamping dies can process smaller outside diameter pipe |
|
5 |
Max bend radius |
R1000 |
mm |
|
|
6 |
Max bend angle |
195 |
° |
|
7 |
Bend speed |
0.5 |
r/min |
Double-cylinder driving, reseting fast, domestic initiative |
|
8 |
Gyration speed |
2.0 |
r/min |
|
|
9 |
Numbers of bend angles |
16 |
--- |
PLC, provided by DELTA |
|
10 |
Electric motor |
Model |
Y220L-4 |
--- |
|
|
Power |
45 |
KW |
|
Rotating speed |
1450 |
r/min |
|
11 |
Oil pressure |
Size |
YB-FQ60 |
|
Guangdong Hydraulic Factory(China Quality Gold Award) |
|
Oil pressure |
21 |
MPa |
solenoid directional control valve, solenoid overflow valve, hydraulic control non-return valve, hydro-cylinder and group valve provided by Jianhu Hydraulic Factory (imported quality level) |
|
Flowing speed |
84 |
L /min |
|
Working pressure |
18 |
MPa |
|
12 |
Size |
Length |
8000 |
mm |
All bearings of the bed piece provided by Haerbin Bearings Corporation(China Top Band) |
|
Width |
2700 |
mm |
|
Height |
1800 |
mm |
|
13 |
Weight |
21000 |
kg |
We are a manufacturer, specialized in producing pipe benders and profile bending machines. We bring in Italian and German technology to manufacture high quality pipe benders and pipe rolling machine. We bend pipes from OD 38mm to 550mm in use of pipe benders. We bend a great number kinds of profiles in use of profile rolling machines, such as angle steel, U-steel, flat bar steel, round pipe steel, square steel, channel steel, I-iron, H-iron, plastic pipes and so on. We manufacture CNC, NC, PLC pipe benders and section bending machines. We are making every efforts to manufacture more and more high quality and good price products!
Dexi occupies 20, 000 square meters workshop and office place. Customers can have samples of their products tested in-house to insure the highest quality results.
Based on the advanced international management mode, the company brings in German machinery production technology and pay more attention to the machine designs and quality of raw materials. The company aims to manufacture the most advanced, durable and stabler pipe benders and bending machines at home and abroad.
The company makes efforts to manufacture machine tools to bend a great number of pipes such as round pipes, square pipes, special-shaped steel pipes, square steel pipes, stainless steel pipes, aluminum pipes, copper pipes, angle steel, flat steel, channel steel, I beam and other nonferrous metal pipes.
Dexi machines sell well at home and some foreign countries and get widely praised from our customers. We not only manufacture and provide high quality products, but also we have golden service after selling. A customer buying our machines means he enjoys the life-long after-selling service.
Our products such as type CNC, NC, PLC hydraulic pipe benders and profile bending machines are widely used in several fields such as aviation, shipbuilding, boilers, road and bridge, construction, automobiles, refrigiration, furniture and so on.
