Product Description
Features:

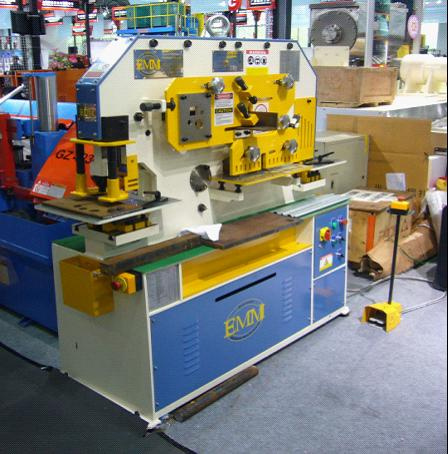

EMM's universal multi-function Ironworker machine for production purposes with maximum efficiency and minimum deformation. The Q35Y-14 (60 ton) pressure machines are in the EMM's tradition of well engineered, robust steelworkers built for long working life.
The universal machines are supplied with standard tooling include repetition support table at punching, shearing and notching stations and with easily adjust hold down at five stations to safely and control the operations, comprehensive safety guards are fitted as standard on all working stations.
Free standing on suitable floor, the ironworker machines just require electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded for switch control, one operating the punching end cylinder, the other operating shearing end cylinder, the shear cylinder provides the power to three shearing stations and notching station.
The system gives precision accurate power inching at all give five works stations and allows the ironworker machine to be stop at any position giving safe and accurate tool setting and working positioning. Limit switches at both ends of the machine control stroke length at all stations.
Centralized lubrication is meter by one - Shot system, being only one feature of the low maintenance requirement.
Machine includes 1 movable magnetic base low volts halogen light, 1meter long touch and cut rule length stop back gauge. Fine adjustment facility to punch stroke and measuring scale in the notching table.
Main standard properties components of Ironworker
1. All the electrical parts are IMPORT with CE certificate.
. Professionally engineered design frame structures.
. Steel welds with high precision strength and rigidity to eliminate vibrations
. Ironworker steel frame Q235 = American standard steel A306 GR55
. 5 sets of photo electric control switch,
. Timer relay by Japanese OMRON,
. All wiring terminal block by WEIDMULLER.
. Main Electrical component by Germany Schneider.
. Oil seals by Japanese,
. O-Ring and Valve by Taiwan for piston pump more durable.
. Hydraulic System by Chinese Beijing Huade
. Motor by Chinese Jiangsu Dazhong
. Hydraulic fuel tanks and ironworker frame built by our Factory.
. Dual independent hydraulic cylinder
. Dual Footswitch controlled work separately
. Easy Adjustable stroke control with ruler
. Indicator on both hydraulic cylinders
. Electric back gauge auto stop
. Moveable working light that can be placed at any desired position
. Hydraulic system with overload protection system
. Emergency safety stop switch
. Large punching table with ruler guide
. Large bending table with ruler guide
. Larger notching table with Ruler guide
. Large flat shearing table with Ruler guide
. Most important easy maintenance
Optional machine parts
ATOS hydraulic system,
ABB motor,
ATOS pump
Hydraulic work pieces auto clamping
Ironworker machine come with Standard tooling and Accessories.
5 work stations
Round bar shearing
Square bar shearing
Flat shearing
Angle steel shearing
45 degree shearing
90 degree shearing,
Notch station,
Hole punching 1 Set
One set of installation and maintenance tools
(EMM) Operation manual and Certification.
One year warranty as purchasing date
|
NO |
Item |
Hydraulic Ironworker |
Unit in mm |
Force (60Ton) |
|
IW-60 |
|
1 |
Flat plate
shearing
|
Angle of shearing |
° |
8° |
|
Max. shearing thickness |
mm |
15 |
|
Flat bar |
(W× T) mm |
200*15 |
|
300*15 |
|
2 |
Selection
bar shearing
|
Round steel |
mm |
40 |
|
Square bar |
mm |
35 |
|
90° shearing of equal-angle bar |
mm |
127*127*12 |
|
45° shearing of equal-angle bar |
mm |
80× 80× 8 |
|
90° shearing of T-bar |
mm |
100× 100× 10 |
|
I or H beam steel |
mm |
140× 86× 6 |
|
U or C channel steel |
mm |
140× 58× 6 |
|
3 |
Notching |
Thickness |
mm |
8 |
|
Width |
mm |
42 |
|
Depth |
mm |
100 |
|
4 |
punching hole |
Max. punching thickness |
mm |
20 |
|
Max. diameter of punching |
mm |
30 |
|
Punching force pressure |
Ton |
60 |
Depth of throat
|
mm |
110 |
|
Max. length of cylinder stroke |
mm |
50 |
|
Stroke times |
times/min |
8 |
|
5 |
Material strength |
N/mm2 |
≤ 450 |
|
6 |
Motor power
|
KW |
4 |
|
7 |
Overall dimensions |
(L× W× H) mm |
1520*590*1700 |
|
8 |
Net. Weight |
KG |
1250 |
