| Prod Model: |
JL-KGPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008, CE, SGS |
| Feature: |
Energy Saving, High Efficiency |
| Package: |
Plywood Case |
| Warranty: |
1 Year |
Product Description

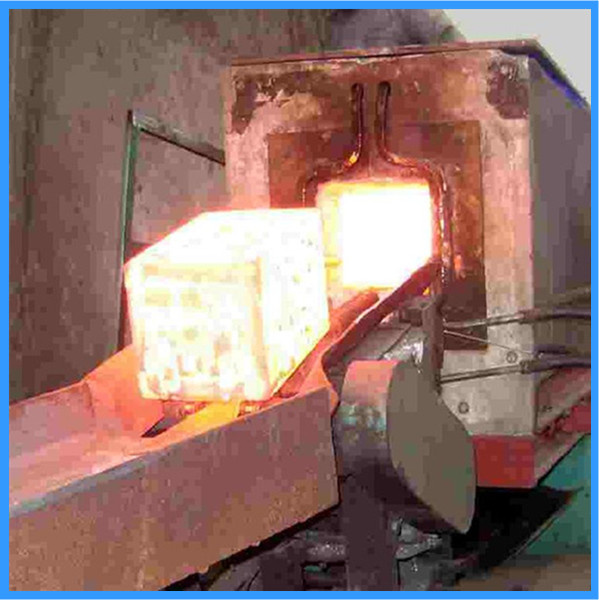

KGPS Medium Frequency Induction Forging Industrial Furnace
1. Application:
By diathermy machine cooperating with medium or high frequency power supply, to achieve the heating process. Commonly used in forging, casting, welding, annealing and other heat treatment process with bar, pipe, wire, sheet and various metal parts.
2. Main technical parameters:
Output Power: 20~3500KW
Output Frequency: 0.5~4kHz
Max Using Temperature: 1250° C(nonferrous metal)
Output Voltage: 20~2000V
Workpiece Material: Steel, iron, copper, aluminum, stainless steel etc
Artifacts Quantity: Single, double location, three, four or more locations
Temperature measurement: Far infrared temperature measurement
3. The types of commonly used heating equipment:
1> bar, pipe diathermy equipment: Section of club, the tube material diathermy before forging or stamping;
2> wire diathermy equipment: Diathermy of linear materials or disk wire;
3> plank diathermy equipment: Diathermy of automobile plate spring, steel plate shape materials etc;
4> special-shaped parts and local diathermy equipment: Used for special-shaped parts global or local diathermy;
5> line heating equipment: Diathermy materials or components with global or local heating in continuous production line, such as PC steel production line, seamless steel tube rolling production line, seamed steel pipe production line, pipe production line, cap sealing production line, etc.
6> Oversize parts diathermy equipment: Used for especially big parts(big volume, heavy) diathermy, such as Marine gear, dam sluices rails, power station motor end ring, large oil pipeline, etc.;
|
Medium Frequency Induction Forging Furnace |
|
Model NO |
Input power ( 50/60HZ) |
|
Water consumption/hour(ton) |
|
|
efficiency ( T/H ) |
|
power KW |
Input voltage V |
Current
A |
Direct current A |
Direct voltage (V) |
MF voltage (V) |
MF frequency (KHZ) |
Power consumption(KW/H) |
Workpiece diameter(mm) |
|
JL-KGPS--50 |
50 |
380 |
80 |
100 |
500 |
750 |
2-4 |
2-10 |
450 |
10-30 |
0.12 |
|
JL-KGPS--100 |
100 |
380 |
160 |
200 |
500 |
750 |
2-4 |
2-10 |
450 |
20-50 |
0.25 |
|
JL-KGPS--160 |
160 |
380 |
256 |
320 |
500 |
750 |
2-4 |
2-10 |
430 |
25-70 |
0.4 |
|
JL-KGPS--200 |
200 |
380 |
320 |
400 |
500 |
750 |
2-4 |
2-10 |
430 |
30-100 |
0.52 |
|
JL-KGPS--300 |
300 |
380 |
480 |
600 |
500 |
750 |
2-4 |
2-10 |
420 |
50-150 |
0.83 |
|
JL-KGPS--400 |
400 |
380 |
640 |
800 |
500 |
750 |
2-4 |
2-10 |
400 |
60-200 |
1.15 |
|
JL-KGPS--500 |
500 |
380 |
800 |
1000 |
500 |
750 |
1-2.5 |
5-15 |
390 |
70-230 |
1.47 |
|
JL-KGPS-600 |
600 |
380 |
960 |
1200 |
500 |
750 |
1-2.5 |
5-15 |
390 |
70-270 |
1.76 |
|
JL-KGPS--800 |
800 |
380 |
1280 |
1600 |
500 |
750 |
0.7-1 |
10-20 |
370 |
80-300 |
2.4 |
|
JL-KGPS--1000 |
1000 |
380 |
1600 |
2000 |
500 |
750 |
0.7-1 |
10-20 |
370 |
100-350 |
2.95 |
|
JL-KGPS--1200 |
1200 |
380 |
1920 |
2400 |
500 |
750 |
0.7-1 |
10-20 |
380 |
|
3.2 |
|
720 |
1010 |
1260 |
950 |
1650 |
120-380 |
|
|
JL-KGPS--1500 |
1500 |
720 |
1263 |
1578 |
950 |
1200 |
0.5-1 |
15-25 |
360 |
|
3.7 |
|
950 |
960 |
1200 |
1200 |
1650 |
120-380 |
|
|
JL-KGPS--2000 |
2000 |
720 |
1684 |
2105 |
950 |
1200 |
0.5-1 |
20-30 |
330 |
|
4.3 |
|
950 |
1280 |
1600 |
1200 |
1650 |
120-380 |
|
|
JL-KGPS--2500 |
2500 |
720 |
2150 |
2630 |
950 |
1200 |
0.3-0.7 |
25-35 |
330 |
|
5 |
|
950 |
1600 |
2000 |
1200 |
1650 |
120-380 |
|
|
JL-KGPS--3500 |
3500 |
|
|
|
|
|
0.2-0.5 |
25-35 |
330 |
|
5.8 |
|
1000 |
1825 |
2280 |
1315 |
1650 |
120-380 |
|
|
:1.steel 1250°C 2.iron1150°C 3.red copper 850 °C 4.brass 650 °C 5. aluminum500 °C |
|
|
Dongguan Jinlai Electromechanical Device Factory, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.
Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.
It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.
Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
