| Prod Model: |
1600VXL-D30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Type: |
1600vxl-D30 |
| Capacity: |
6.70 (M3/S) |
| Head (M): |
25.0 |
| Eff. (%): |
87 |
| Speed: |
495(R/Min) |
| Motor Power: |
2500 (Kw) |
| Working Pressure: |
Low Pressure Pump |
| Position Of Pump Shaft: |
Vertical Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Double-Suction Pump |
Product Description

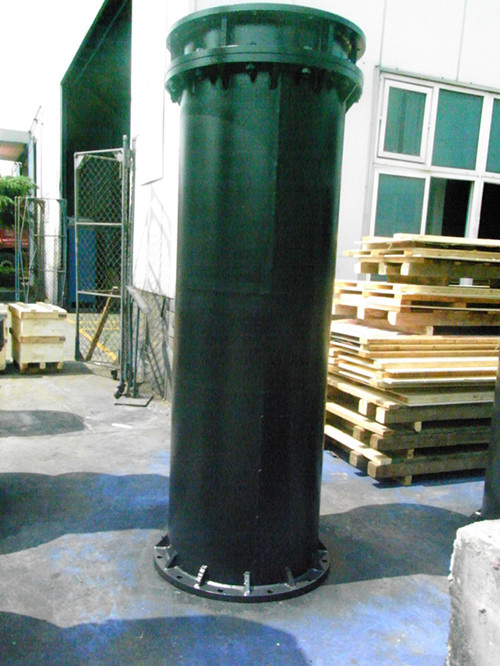

Large power vertical sloping flow pump(1600VXL-D30)
Features:
1. Three-dimensional modeling: Reasonable structure and wider application
2. Application of CFD, good performance high efficiency, which is improved by 3%-6% compared to the old generation
3. High reliability, Long service life.
4. Occupying less area, save basic investment, convenient to construct
5. Easy maintenance
6. Derivative products can be elected according to working conditions
Type: VXL-D
The flange is under the adaptor plate, this illustration shows that the internal casting parts can be taken out.
Payment term and delivery term:
Delivery Time: 20 working days
Period of Validity: In 30days
Packing: Foam plate packaging/ wooden case packing
Terms of Payment: 30% of the total amount prepaid as front money after the contract, 70% of the total amount paid before delivery.
Delivery term: FOB Shanghai
Warranty: 12 months or 1000 running hours since discharge of the goods at buyer's place.
|
Type |
Capacity
(m 3 /s) |
Head
(m) |
Eff.
(%) |
Speed
(r/min) |
(NPSH)r
(m) |
Motor Power
(kw) |
Weight
(x10 3 kg) |
|
1600VXL-D23 |
5.00
5.60
6.20 |
25.5
22.4
17.5 |
88
89
87 |
425 |
8.2
8.8
9.9 |
1600 |
35.0 |
|
1600VXL-D25 |
5.00
5.36
6.40 |
27.0
24.9
17.0 |
87
88
74 |
495 |
8.1
8.6
12.0 |
1800 |
31.0 |
|
1600VXL-D30 |
5.55
5.93
6.70 |
33.0
30.5
25.0 |
87
88
87 |
495 |
10.7
11.4
13.1 |
2500 |
48.0 |
|
1800VXL-D8 |
6.80
7.52
7.80 |
8.6
7.6
7.0 |
88
88
87 |
295 |
6.9
7.4
7.7 |
710 |
39.0 |
|
1800VXL-D12 |
5.50
6.32
7.2 |
15.0
12.0
9.50 |
85
88
85 |
370 |
5.5
6.1
7.1 |
1250 |
46.0 |
|
1800VXL-D16 |
5.00
6.00
7.00 |
13.6
16.0
18.3 |
86
88
88 |
370 |
6.2
6.5
6.8 |
1600 |
45.0 |
|
1800VXL-U18 |
5.18
6.10
7.00 |
20.0
17.8
15.0 |
82
88
87 |
425 |
10.8
12.4
13.6 |
1600 |
35.0 |
|
1800VXL-D18 |
5.10
5.67
6.40 |
20.0
17.5
14.9 |
84
86
88 |
495 |
8.1
8.3
8.8 |
1600 |
50.0 |
