| Prod Model: |
1400VXL-U10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Mixed Flow Pump |
| Type: |
1400vxl-U10 |
| Capacity: |
6.51 (M3/S) |
| Head: |
7.2 (M) |
| Eff.: |
78 (%) |
| Speed: |
370(R/Min) |
| Motor Power: |
800(Kw) |
| Working Pressure: |
Low Pressure Pump |
| Position Of Pump Shaft: |
Vertical Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Double-Suction Pump |
Product Description

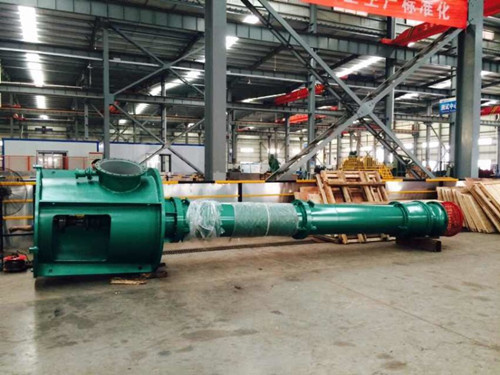

Single Stage Vertical Mixed Flow Pump (1400VXL)
Brief Introduction:
The series of VXL Vertical Mixed Flow Pump, which integrated with the new domestic & external advanced technologies and modern design measure CFD soft analysts, are developed and innovated a series of new generation pumps by our company. Reasonable structure, excellent performance and high reliability are their main characteristics.
Type: VXL-U
The flange is on the adaptor plate, the illustration shows that the internal casting parts can't be taken out.
Payment term and delivery term:
Delivery Time: 20 working days
Period of Validity: In 30days
Packing: Foam plate packaging/ wooden case packing
Terms of Payment: 30% of the total amount prepaid as front money after the contract, 70% of the total amount paid before delivery.
Delivery term: FOB Shanghai
Warranty: 12 months or 1000 running hours since discharge of the goods at buyer's place.
|
Type |
Capacity
(m 3 /s) |
Head
(m) |
Eff.
(%) |
Speed
(r/min) |
(NPSH)r
(m) |
Motor Power
(kw) |
Weight
(x10 3 kg) |
|
1200VXL-D22 |
2.75
3.10
3.70 |
25.2
22.0
15.0 |
85
87
85 |
740 |
8.8
9.5
11.5 |
900 |
21.0 |
|
1400VXL-U9 |
2.90
3.65
4.25 |
10.8
8.6
5.5 |
83
87
82 |
370 |
7.3
8.0
8.8 |
500 |
22.0 |
|
1400VXL-U10 |
4.10
5.85
6.51 |
14.0
9.5
7.2 |
78
84
78 |
370 |
7.1
8.5
9.5 |
800 |
17.0 |
|
1400VXL-D10 |
2.70
3.42
3.76 |
12.5
10.0
7.6 |
85
88
85 |
495 |
5.2
6.4
7.3 |
500 |
21.5 |
|
1400VXL-D18 |
3.4
4.0
4.52 |
22.0
19.0
14.0 |
82
87
85 |
495 |
6.4
6.7
7 |
1000 |
26.0 |
|
1400VXL-U60 |
3.48
4.50
5.51 |
66.7
60.0
48.9 |
82
86
82 |
495 |
9
10
13.5 |
3600 |
35.0 |
|
1500VLXA-D15 |
2.72
3.34
4.02 |
17.0
14.6
10.2 |
81
89
84 |
370 |
4.4
5.2
6.3 |
630 |
28.0 |
|
1500VXL-D25 |
4.40
5.20
6.17 |
29.5
25.3
18.8 |
81
87
87 |
590 |
8.7
9.8
11.5 |
1800 |
24.0 |
|
1500VXL-D21 |
3.70
4.50
5.20 |
25.5
21.0
15.0 |
85
88
82 |
495 |
8.2
9.4
11.4 |
1250 |
37.0 |
|
1500VXL-D23 |
2.50
3.20
3.90 |
25.4
23.0
19.0 |
82
87
81 |
425 |
5.0
5.5
7.6 |
1250 |
25.0 |
|
1500VXL-D26 |
3.68
4.40
5.31 |
22.4
19.8
15.8 |
83
88
85 |
495 |
8.4
9.2
11.6 |
1600 |
31.5 |
