Lh Multi Function Material Handling Attachment Tri-Lateral Head for Forklift

Name: Lh Multi Function Material Handling Attachment Tri-Lateral Head for Forklift
Brand: china-castingforging.com
SKU: 679530591
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1set
Pay Type:	L/C,T/T

Contact Supplier

Fujian Longhe Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	Tri-Lateral Head
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Tri-Lateral Head
Capacity:	1900kg
Color:	White
Pallet Size:	1000/1000 1200/1000
Working Space:	100mm
Horizontal Center Of Side:	1380mm
Horizontal Center Of Gravity:	475mm
Weight:	425 445 465 500 520kg

Product Description

Specifications

Multi function material handling tri-lateral head | lift truck attachment
MOQ: 1 unit
Material :steel
Manufacturer

Multi function material handling tri-lateral head | lift truck attachment

Features:

1, Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.

2, Thin arm profile and smooth arm contour easies roll breakout and permits close stacking.

3, Contact pads with integral casting structure, abrasion resistance, long service life. Contact pads surface reasonable, provide the best clamping friction.

4, Continuous 360`rotation, any angle position of lock function, revolving positing 90` or 180`.

5, Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.

Packaging & Delivery

Packaging Details: Bubble Film Packaging With Pallet,Loaded Into Container,8Units /20'CTN

Delivery Detail: 10-15days after order confirm(As per customer's order quantity)

Specification

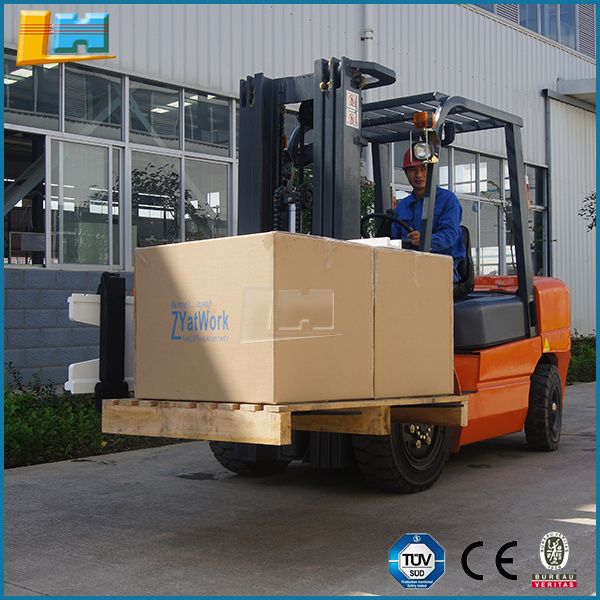

Tri-lateral head unit is an unique attachment that can put the forks on either front, left or right side while loading. It is between the forks and fork carriage, swing 180 degree

and side shifting via 2 units of hydraulic circuit. It can reach

the goods from the side without turning around, realizing reload and stack goods in the narrow aisle.

1. Achieved 180°side shifting by two set oil circuit drive system

2. Chain drive system ensure the stable side shifting

3.Lower arm-slide bearing used wear-resistant nylon material to ensure smoothly move.

4.Upper arm-slide bearing used idler wheel slideway to ensure high coefficient of stability.

5.Regenerative hydraulic valving for optimal side shifting speed

Capacity	Catalog Order No.	Pallet Size(mm)	Stroke(mm)	Working Space(mm)	Width(mm)	Horizontal Center of Gravity(mm)	Horizontal Center of Side(mm)	Horizontal Center of Side(mm)	C.og gravity of side load inside(mm)	C.of side load all out(mm)	C.of side load outside(mm)	Weight (kg)	Effective Thickness(mm)
800	SXJ08D-C001	1000/1000	1100	100	1300/1500	475	1380	350/185	680	440	1250	425	130
800	SXJ08D-C002	1200/1000	1300	100	1500/1700	485	1480	340/210	680	500	1450	445	130
1200	SXJ12D-C001	1000/1000	1100	100	1300/1500	475	1380	350/185	680	440	1250	445	130
1200	SXJ12D-C002	1200/1000	1300	100	1500/1700	485	1480	340/210	680	500	1450	465	130
1500	SXJ15D-C001	1000/1000	1110	100	1250/1550	335	1460	275/256	815	305	1215	500	130
1500	SXJ15D-C002	1200/1200	1310	100	1550/1750	340	1560	280/276	815	335	1415	520	130

LH supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

We are specialized in designing, manufacturing and selling forklift forks (ISO/FEM standard forks, blank forks, pin type forks, straight forks, big section forks and special forks), forklift parts, forklift attachments (mechanical and hydraulic), engineering equipment attachments, agricultural equipment attachments, and automobile parts.

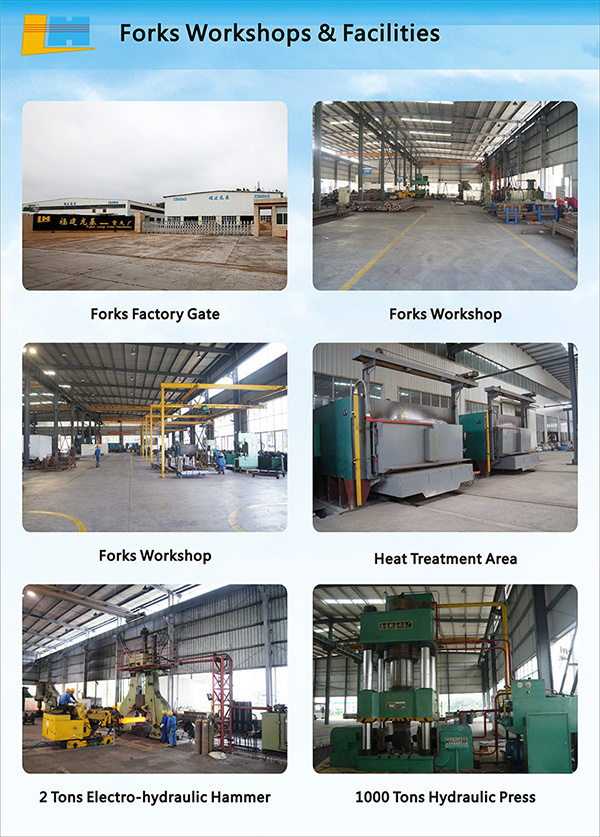

Our company has modern and professional manufacturing and testing equipment. Counting on solid technical strength, reliable process, ERP management software from SAP, reliable quality, excellent service, strict management, and ISO9001 Quality Management System Authentication, Fujian Longji is competitive. Our products have been exported to more than 50 countries and regions, such as Australia, Sweden, Germany, the UK and America, and have won the recognition and trust from domestic and international customers.

Located in Yongding Industry Area, Fujian, China, Fujian Longji Mechanical Equipment Manufacturing Co., Ltd. Occupies an area of 70, 000 square meters with a total investment of 146 million Yuan. With the tenet of "A journey of a thousand miles begins with a single step and pursuit is endless", we will always urge ourselves ahead. We sincerely treat every customer as our closest relative and best friend and are dedicated to providing perfect products. "German quality, Made in Longji" is our principle.
