| Prod Model: |
DSC05174 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Lift Truck Attachment |
| Capacity: |
1900kg |
| Color: |
White |
| Pallet Size: |
1000/1000 1200/1000 |
| Working Space: |
100mm |
| Horizontal Center Of Side: |
1380mm |
| Horizontal Center Of Gravity: |
475mm |
| Weight: |
425 445 465 500 520kg |
Product Description
Specifications
Multi function material handling tri-lateral head | lift truck attachment
MOQ: 1 unit
Material :steel
Manufacturer
Multi function material handling tri-lateral head | lift truck attachment
Features:
1, Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.
2, Thin arm profile and smooth arm contour easies roll breakout and permits close stacking.
3, Contact pads with integral casting structure, abrasion resistance, long service life. Contact pads surface reasonable, provide the best clamping friction.
4, Continuous 360`rotation, any angle position of lock function, revolving positing 90` or 180`.
5, Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.
Packaging & Delivery
Packaging Details: Bubble Film Packaging With Pallet,Loaded Into Container,8Units /20'CTN
Delivery Detail: 10-15days after order confirm(As per customer's order quantity)
Specification

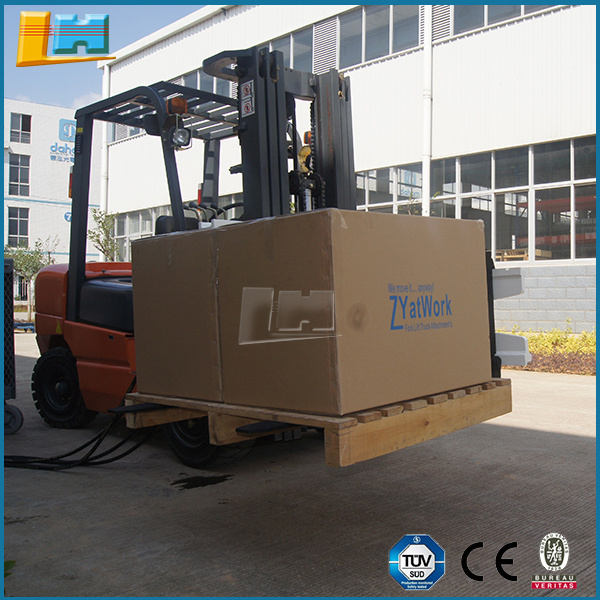

Tri-lateral head unit is an unique attachment that can put the forks on either front, left or right side while loading. It is between the forks and fork carriage, swing 180 degree
and side shifting via 2 units of hydraulic circuit. It can reach
the goods from the side without turning around, realizing reload and stack goods in the narrow aisle.
1. Achieved 180°side shifting by two set oil circuit drive system
2. Chain drive system ensure the stable side shifting
3.Lower arm-slide bearing used wear-resistant nylon material to ensure smoothly move.
4.Upper arm-slide bearing used idler wheel slideway to ensure high coefficient of stability.
5.Regenerative hydraulic valving for optimal side shifting speed
Capacity |
Catalog
Order No. |
Pallet
Size(mm) | Stroke(mm) | Working
Space(mm) | Width(mm) | Horizontal
Center of
Gravity(mm) | Horizontal
Center of
Side(mm) | Horizontal
Center of
Side(mm) | C.og gravity
of side load
inside(mm) | C.of side
load all out(mm) | C.of side
load outside(mm) | Weight
(kg) | Effective
Thickness(mm) |
| 800 | SXJ08D-C001 | 1000/1000 | 1100 | 100 | 1300/1500 | 475 | 1380 | 350/185 | 680 | 440 | 1250 | 425 | 130 |
| 800 | SXJ08D-C002 | 1200/1000 | 1300 | 100 | 1500/1700 | 485 | 1480 | 340/210 | 680 | 500 | 1450 | 445 | 130 |
| 1200 | SXJ12D-C001 | 1000/1000 | 1100 | 100 | 1300/1500 | 475 | 1380 | 350/185 | 680 | 440 | 1250 | 445 | 130 |
| 1200 | SXJ12D-C002 | 1200/1000 | 1300 | 100 | 1500/1700 | 485 | 1480 | 340/210 | 680 | 500 | 1450 | 465 | 130 |
| 1500 | SXJ15D-C001 | 1000/1000 | 1110 | 100 | 1250/1550 | 335 | 1460 | 275/256 | 815 | 305 | 1215 | 500 | 130 |
| 1500 | SXJ15D-C002 | 1200/1200 | 1310 | 100 | 1550/1750 | 340 | 1560 | 280/276 | 815 | 335 | 1415 | 520 | 130 |
