Product Description
Line Cold Roll Forming Machine
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Machine`s Feature

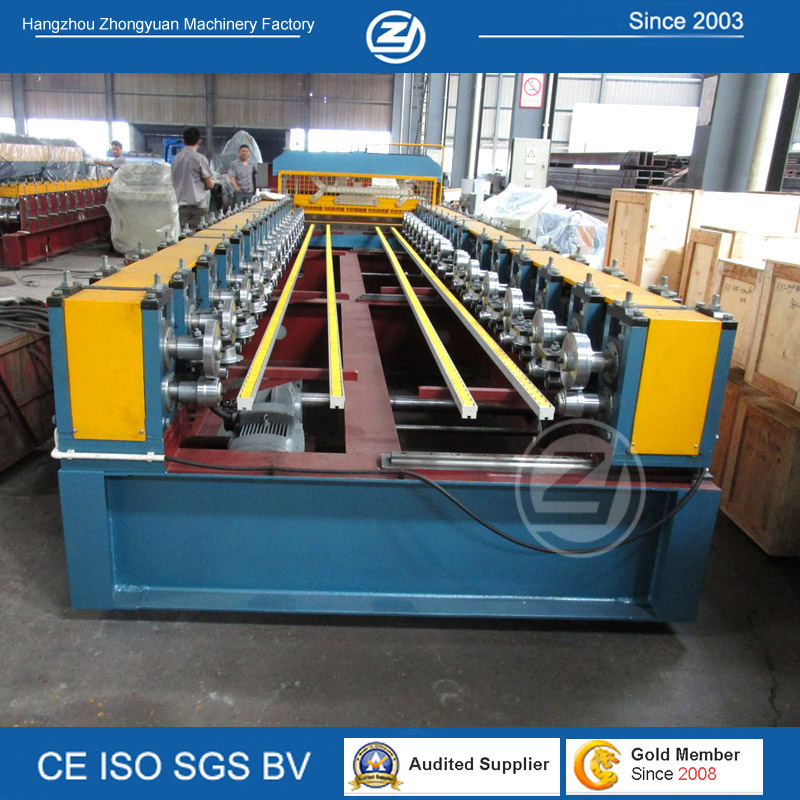

It is composed of about 10 groups of adjustable width roller. One side fixed, one side can be adjusted by screw. In the middle there is upper-lower press material wheel, it is used to clamp material, make sure the material will not curve when forming in the middle.
Main technical parameters:
1. Suitable material: Color steel sheet
2. Thickness of raw material: 0.4-0.7mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: About 20m/min
5. Power Requirement
Main motor power: 5.5Kw(Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoiler's loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)
7. Controlling system: Mitsubishi PLC & converter
8. Machine Dimension: About 10m× 1.8m× 1.5m (Depend on final design)
9. Total weight: About 6500kg
10. Warranty: 1 year
| Item | Specification |
| Type | Pre-painted steel coil & galvanized coils |
| Material | Thickness(mm) | 0.4-0.7 |
| Yield strength(mpa) | 235-345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 20 |
| Output speed(m/min) | 12 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW |
| Total power(kw) | 7.7KW |
Components of machine |
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Output table | 1set |
