| Prod Model: |
LONGTERM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
LPG/LNG Cylinder Flow Production Plant Shot Blasti |
| Brand: |
Longterm |
| Application: |
Production of Gas Cylinder |
| Motor Power: |
3kw |
| Certification: |
CE |
Product Description

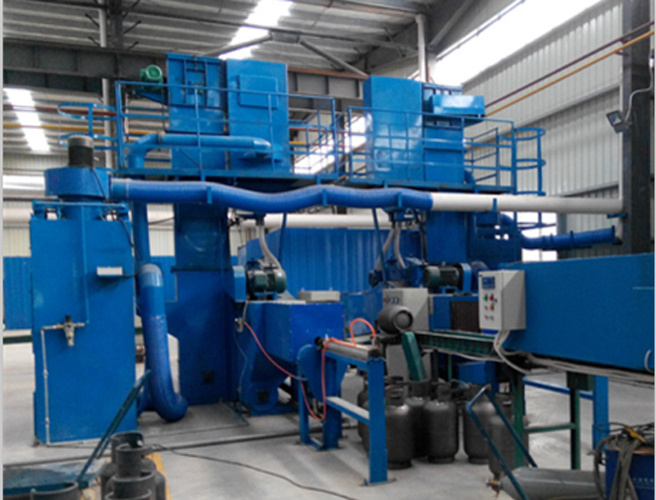

LPG/LNG Cylinder Flow Production Plant Shot Blasting Machine
Shot Blasting Machine for LPG Cylinder are predominantly used to clean LPG/CNC/GAS cylinder in a continuous through feed process, remove remains of casting sand and cores, rust, old paint, visible signs of welding, eliminate surface stress, improve the fatigue strength of the workpiece, increases workpiece film adhesion of the paint job, and ultimately achieve the aim of improving the quality of surface and internal, prepare for surface protection (coloring, enameling, galvanizing, etc.).
| Main Technical Parameter |
| 1.Production Efficiency | 80~120Pieces/Hour |
| 2.No. of Shot Blasting Machine | 2 Sets |
| 3.Hoist Motor Power | 2.2KW |
| 4.Total Motor Power | 31.2KW |
| 5.Diameter of Workpiece | Φ320mm*Φ680mm |
| 6.Machine Dimensions(length*width*height) | L*7885*2460mm( L customized) |
| 7.Weight | 16T |
Other Machines of the LPG Cylinder Production Line:
| No. | Description | Size&Specis | Unit |
| I | Main Equipment |
|
|
| 1 | Hydraulic Press | 500T | set |
| 2 | De-colier and punching machine for small round sheet cutting from big sheet (material preparing for shell) | XL-2 | set |
| 3 | Material cutting mould on hydraulic press |
| set |
| 4 | 63ton hydraulic logo stamping machine | 63T | set |
| 5 | Shell drawing machine | 200/300 | set |
| 6 | Shell forming mould | LS-2 | set |
| 7 | Automatic trimming machine | QK-4 | set |
| 8 | End dish necking machine | SK-3 | set |
| 9 | Cleaning machine | QL-5 | set |
| 10 | Hole punching machine | CK-3 | set |
| 11 | Valve Seat Welding Machine | HP-2 | set |
| 12 | Shroud welding machine | HZ-1 | set |
| 13 | Bottom base welding machine | DZ-1 | set |
| 14 | Assembling Machine | ZH-1 | set |
| 15 | Option NO.1:Circumferential Seam welding machine | HJ-3 | set |
| Option NO.2:Circumferential seam welding machine | Single head MAG | set |
| 16 | Annealing furnace with burner | TW-1 | set |
| 17 | Hydrostatic Testing Machine | SY-6 | set |
| 18 | Shot blasting machine | QYP15 | set |
| 19 | Spraying line | JH-2 | set |
| 20 | Valve mounting machine | JF-2 | set |
| 21 | Air Leakage Testing Machine | Cm-2 | set |
| 22 | Printing machine | ZS-2 | set |
| 23 | Roller conveyor line |
| m |
| 24 | Curve Convoyer |
| m |
| 25 | Conveyor line power |
| set |
| 26 | Motorized testing pump |
| set |
| 27 | Cylinder drying machine |
| set |
| II | Equipment For Accessories Manufacturing Equipment |
|
|
| 28 | Punching machine/power press | 25T | set |
| 29 | Punching machine/power press | 63T | set |
| 30 | Punching machine/power press | 100T | set |
| 31 | Bottom base hydraulic forming machine |
| set |
| 32 | Shroud upper R hydraulic forming machine |
| set |
| 33 | shearing machine | 4mm*1.5m | set |
| 34 | Shearing machine | 4mm*2.5m | set |
| 35 | Printing machine | GZ-2 | set |
| 36 | Coding machine | BM-1 | set |
| 37 | Shroud rolling machine |
| set |
| 38 | Bottom base rolling machine |
| set |
| 39 | Shroud mould |
| set |
| 40 | Bottom base mould | DM-2 | set |
| 41 | Bottonm base welding machine |
| set |
| III | Auxiliary Equipment |
|
|
| 42 | Air compressor (screw) | 10/0.8 | set |
| 43 | Air compressor (piston) | 2.0/3.0 | set |
| 44 | Air storage tank | 1m3/3Mpa | set |
| 45 | Air storage tank | 2m3/1Mpa | set |
| IV | Testing Equipment |
|
|
| 46 | X-ray detecting equipment | 2505C | set |
| 47 | Mechanical property testing equipment | WES-600B | set |
| 48 | Burst pressure testing equipment |
| set |
| 49 | Ultrasonic wall thickness testing equipment |
| set |
FAQ
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
Wuxi Longterm Machinery is a professional supplier of all type of industrial equipment, flexible products, etc...With many years of history, the main items are as follows:
I. Production Line of LPG Gas Cylinder
Including circumferential seam welding machine
Longtitudinal seam welding machine
Hydraulic leakage test
Automatic trimming machine
Valve seat welding machine
Foot ring welding machine
Protection enclosure welding machine
End dish shaping machine
Annealing furnace
Shot blasting machine
Sandblast machine
2. Production line for Solar Water Tank
Including pressurized and non-pressurized solar water tank manufacturing line
The main equipment are as follows:
Circumferential seam welding machine
Longitudinal seam welding machine
Pipe fitting welding machine
Hole punching machine
Grooving machine
3. Production line for Steel Drum Manufacturing Line
Sheet rolling machine
Spot welding machine
Longitudinal seam welding machine
Grooving machine
Leakage testing machine
Flanging machine
Sealing machine
4. Flexible metal hose/ Expansion joints manufacturing machineries & products
-expansion joint
- flexible metal hoses
--vacuum bellows & hoses
- hose & pipe fitting
-welding seamer
-bellow forming machine
Mechanical bellow forming machine,
Mechanical hose forming machine
Hydro bellow forming machine
-flexible metal hose making machine
-hydraulic metal hose making machine
-EGR tubes
-EGR tube making equipment
-Braiding Machine
-camlock coupling
The above products have been exported to Ukraine, USA, Japan, Turkey, India and Egypt, etc...
In China. We are capable total in-house design, manufacturing & testing capabilities.
