| Prod Model: |
DEYI0208 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

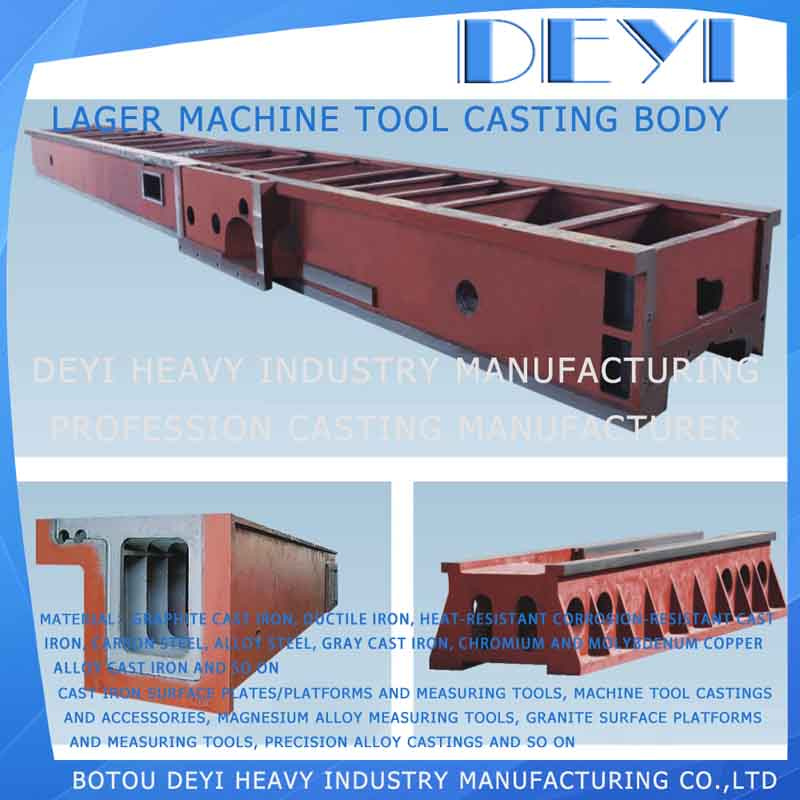

Precision Machine Tool Castings |
| Specification: |
200mm*100mm to 3000mm*8000mm |
| Material: |
Ht200-Ht300, Qt400-700 |
| Accuracy: |
0.03-0.3mm |
| Brinell Hardness: |
170-240 Hbw |
| QA1: |
Physical and Chemical Inspection Report |
| QA2: |
Metallographic Examination, Dim Inspection Report |
| QA3: |
Customer Requirements Reports. |
| Packaging: |
Wooden Cases, Steel Cases, Cartons |
| Brand: |
Deyi |
| Type: |
Clay Dry Sand |
Product Description
Botou Deyi Heavy Industry Manufacturing Co.,Ltd is specialized cast iron surface plate manufacturer and a professional company which is engaged in casting , machining, machine tool supporting.
Main prodcuts are Cast Iron Surface Plates/Platforms And Measuring Tools,
Machine Tool Castings And Accessories, Magnesium Alloy Measuring Tools,
Granite Surface Plates/Platforms And Measuring Tools, Precision Alloy Castings and so on, and the material are graphite cast iron, ductile iron, heat-resistant corrosion-resistant cast iron, carbon steel, alloy steel, gray cast iron, chromium and molybdenum copper alloy cast iron and so on.
Our quality assurance system is sound and has passed ISO9001:2000 international quality system certification
Our products reached a international quality standards. At home, products have successfully used in some large enterprises, domestic: China State Shipbuilding Corporation, SINOPEC, China Electric Power Group Corporation and so on. At abroad, the products exported to Turkey, Holland, South Africa, India, England, United Arab Emirates and other countries.
Product Detailed Description:
| Product Category | Machine Tool Castings And Accessories, Lathe Bed |
| Product Standard | Machine Tool Castings Standard: GB9434-88;
Quality tolerances: GB/T11351-89;
Dimensional tolerances: GB6414-1999;
Cast Iron Surface Plate Standard: JB/T7974-1999 |
| Specification | Standard and Heterogeneous Type |
| Casting Equipment | Cupola Furnace/ Industrial Electric Furnace |
| Casting Technique | Resin Sand Casting etc. |
| Material | Spheroidal Graphite, Gray iron etc. (HT200-300, QT400-500 etc.) |
| Weight | 1000kgs-50000kgs |
| Surface Treatment | Painting, Heat Treatment, Finish Plane etc. |
| Fine Finishing | Complete machining such as Machining center, CNC, Lathe, Milling machine, drilling etc. |
| Quality Assurance | Physical and Chemical Inspection Report,
Metallographic Examination,
DIM Inspection Report, and Customer Requirements Reports.
(Third Party inspection available upon customers requirements) |
| Packing | Export Packing:Wooden Cases, Steel Cases |
| Size and design | As per the customer's drawings and requirements
(we can offer the new drawings to the customer) |
We will strictly observe the processing requirement as stipulate in the drawings and contract.
We can accept the payment: T/T, L/C etc. |
Machine tool castings also be called heavy castings, the standard is GB9439-88, the material is HT200-300, it's divided into sand mold casting and special casting. The machine tool castings' production is that the metal mixture is heated to melt, so that it has the fluidity, and then poured into the mold cavity with a certain shape, under gravity or external force (Pressure, centrifugal force, electromagnetic force etc.) the mold cavity is full filled by the liquid, form the machine tool casting (parts) after the liquid is cooled and solidified.
Our company can design drawings and produce according to the customer requirements.
We can design and meet actual application drawings according to customers' requirements.
The lathe bed should to be the annealing treatment which can reduce the hardness of metals and improve the plasticity and eliminate the residual stress to prevent the deformation and crack.
Packaging Detail: The plate is covered with pickling oil and oilpaper before packed for storage. Complete set to be packed and sealed in a wooded crate with a complete item list displayed on outside of crate. Or as clients' requirements.
Delivery Detail: According to the customer's purchase quantity (In 30 days).
We can offer high quality product with competitive price with relatively short lead time.
Botou Deyi Heavy Industry Manufacturing Co.,Ltd is specialized cast iron surface plate manufacturer and a professional company which is engaged in casting , machining, machine tool supporting.
Main prodcuts are Cast Iron Surface Plates/Platforms And Measuring Tools,
Machine Tool Castings And Accessories, Magnesium Alloy Measuring Tools,
Granite Surface Plates/Platforms And Measuring Tools, Precision Alloy Castings and so on, and the material are graphite cast iron, ductile iron, heat-resistant corrosion-resistant cast iron, carbon steel, alloy steel, gray cast iron, chromium and molybdenum copper alloy cast iron and so on.
Our quality assurance system is sound and has passed ISO9001:2000 international quality system certification
Our products reached a international quality standards. At home, products have successfully used in some large enterprises, domestic: China State Shipbuilding Corporation, SINOPEC, China Electric Power Group Corporation and so on. At abroad, the products exported to Turkey, Holland, South Africa, India, England, United Arab Emirates and other countries.
