| Prod Model: |
C80-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8500*1600*1550mm |
| Weight: |
7500kgs |
| Forming Steps: |
13+3steps for Reshaping |
| Processing Speed: |
10-15m/Min |
| Voltage: |
380V/50Hz/3pH |
| Lip For C Purline: |
15-25mm |
| Width Of Purline: |
80-250mm |
| Height Of Purline: |
30-70mm |
| Forming Thickness: |
1.0-2.5mm |
| Forging Forming Method: |
Free Forging |
Product Description

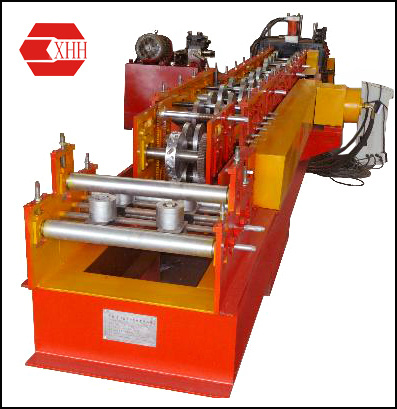

Automatic C-shape Purline Forming Line:
Power: 18KW+0.75KW*3sets
Informations of C80-250 Automatic C-shape Purline Forming line, Purline Machine and Purline Forming Machine with Automatic Ajustment Model are as follows:
Main Accessories:
(1) Main Purline Forming Machine;
(2) 5 Tons Manual Uncoiler;
(3) Automatic Guide Device;
(4) Hydraulic System ( there are total three oil cylinders, two for punching holes, one for pre-cutter)
(5) Hydraulic Motor;
(6) PLC Computer Controlling System with Touching Screen
(Brand: Delta or Schneider, or Siemens, choose any one);
(7) Pre-punching Holes Device( the buyer decide the size of punching holes );
(8) Pre-cutting Device;
(9) Reshaping Device;
(10) Run Out Table(4 PCS);
(11) Tools;
(12) Operation Manual.
Material: Normal galvanized building sheets
Usage: Purlines for Steel Structure
Feature: Completely automaticly changing any models from 80mm to 250mm, and produce the
C-shaped purline with PLC computer controlling system, can save more times, labors and costs.
Delivery Time: 60 days
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
