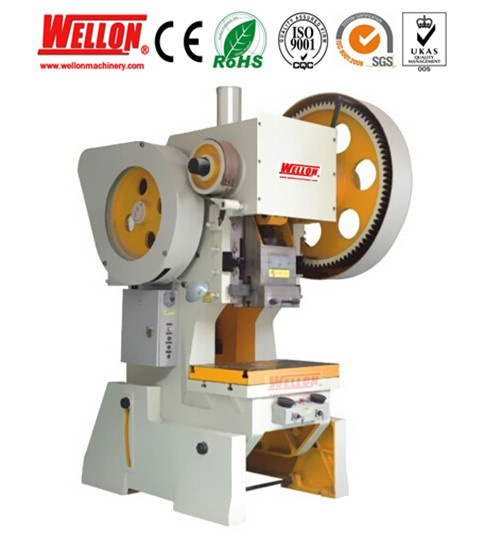

Mechanical Power Press Machine (Power press J23 Series)

Prod Model:	j23
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	63-1250 Kn
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Power Source:	Hydraulic Pressure
Precision:	High Precision

Product Description

Punching, bending and other cold stamping process.

C-frame Casting fuselage, maximum rigidity and minimum deflection for accurate parts and long tool life. Body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.

The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.

Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.

Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.

Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

Machine is with both hands button and foot switch control: Anti-tie down, non-repeat controls with ring guards; Conforms to OSHA.

Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

Parameters		Unit	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40	J23-63	J23-63	J23-80	J23-100	J23-125
Nominal pressure  on sliding block		KN	63	100	160	250	350	400	630	630	800	1000	1250
Nominal pressure  stroke Sp		mm	2	2	2	2.5	3.5	6	6	7	7	7	8
Slide stroke		mm	35	45	55	65	80	90	110	110	120	140	150
Stroke frequency	Fast speed	times/	170	145	120
	Low speed	min				55	50	45	50	40	38	38	35
Die height		mm	150	180	220	270	290	320	360	390	440	480	500
Die Height Adjustment		mm	30	35	45	55	60	65	80	80	90	100	100
Distance between slider  center and machine		mm	110	130	160	200	220	250	260	310	350	380	390
Vertical columns  distance		mm	150	180	220	270	280	340	350	420	450	560	550
Slider bottom size	L×R	mm	140	170	200	250	250	300	300	400	430	540	540
	F×B	mm	120	150	180	220	220	220	260	360	360	480	480
Size of handle hole	Diameter	mm	30	30	40	40	40	50	50	50	60	60	60
	Depth	mm	55	55	60	60	60	70	70	70	75	75	75
Size of worktable	L×R	mm	310	370	450	560	610	700	760	860	950	1080	1100
	F×B	mm	200	240	300	370	400	460	480	570	650	710	720
Thickness of  worktable		mm	30	35	40	50	60	65	80	80	100	120	130
