Beat Weight:
16-150 Kg
Forging Forming Method:
Free Forging
Product Description
Specifications 1. It is used for forging and shaping work pieces 2. It is easy to operate through controlling the travel of top swage.

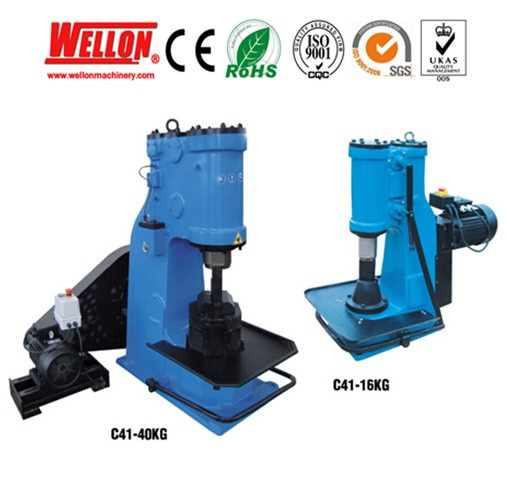

Features 1. The air hammer is used for forging and shaping work pieces 2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever. 3. It's models range from 16KG to 150KG 4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting 5. It is also used for forging in bolster dies.
Model
C41-16KG
C41-20KG
C41-25KG
C41-40KG
C41-75KG
C41-150KG
Beat weight(kg)
16
20
25
40
75
150
Beat capacity(kgf-m)
180
220
270
530
900
1650
Height of working(mm)
180
200
240
245
300
370
Beat times/minute
258
270
250
245
210
180
Length of rectangular(mm)
20x20
30X30
40X40
52X52
65x65
130x130
Length of circular(mm)
¢20
¢35
¢45
¢68
¢85
¢145
Power (kW)
1.5
2.2
2.2
4.5
7
15
Speed of motor (rpm)
1440
1440
1440
1440
1440
1470
Weight of anvil block(kg)
-
200
250
400
850
1800
Packing Size(cm)
58.5x39x95
67X37X105
80X41X121
108X60X139
160x95x195
208x124x235
N.W./G.W.(kg)
240/265
500/560
760/860
1350/1450
2800/2900
5060/5260
We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
Specifications
