Product Description

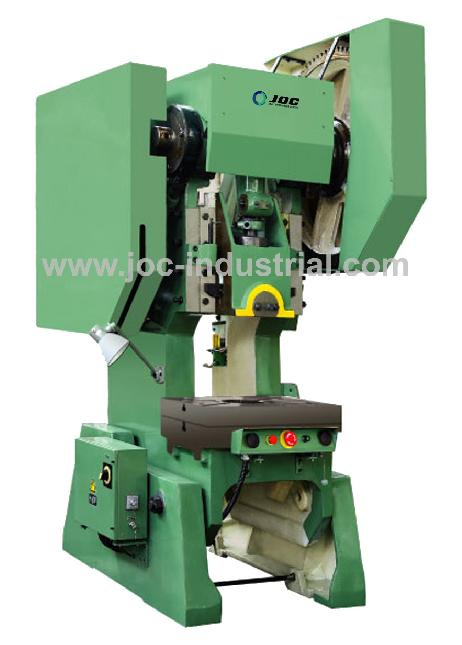

-This open back inclinable press with protective guard
Features:
-Cast and inclinable frame, to ensure high rigidity and less deformation
-Turn-key and rigid clutch, with flexible movement and reliable performance
-Crankshaft placed crosswise, V-type guides of the slide in high accuracy
-Press-collape block device, to ensure safety in press operation
-Emergency brake device, to control the slide stop at any position within 135° In case the arms or any foreign substances accessing working area
-Photoelectric protector, transmission output axle, feeder, air cushion and other optional accessories are available for the power press subject to the users demands
|
Nominal force (kN) |
800 |
|
Nominal pressure stroke |
5 |
|
Stroke of slide (mm) |
120 |
|
Number of strokes (min -1 ) |
50 |
|
Max. die set height (mm) |
270 |
|
Adjustment of die height (mm) |
90 |
|
Depth of throat (mm) |
260 |
|
Distance between uprights (mm) |
350 |
|
Table dimensions (mm) |
710 |
|
480 |
|
90 |
|
Hole of table (mm) |
180 |
|
Bottom size of slide (mm) |
320 |
|
280 |
|
Hole for punch shank (mm) |
50 |
|
80 |
|
Motor power (kW) |
7.5 |
|
Overall dimensions (mm) |
1890x1400x2820 |
|
Weight (kg) |
5300 |
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
