| Prod Model: |
MFP400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Heater |
| Structure Material: |
Metal Material |
Product Description
Features:

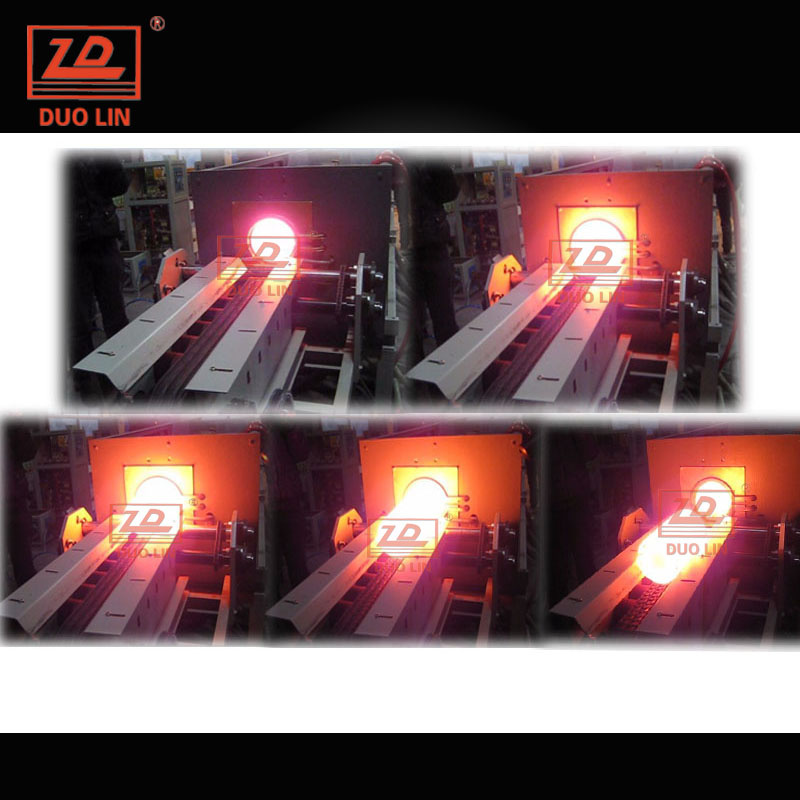

The Induction Machine for Steel Forging Heating System with latest IGBT inversion technology
Suitable for Heating medium and large Metal parts (φ 40-200mm)
Heating up Metal parts rapidly without oxidization skin ensure product quality
Good uniformity of heating minimizes temperature difference between surface and center
With LC Series Resonation technology, the system saves energy 15-30% compared with SCR LC Parallel resonation.
With 100% duty cycle can run 24 hours
Lower operating cost: Lower energy consumption and 90% High efficiency
Equipped with DM/DI Water Cooling system to guarantee good reliability
Prefect protection technology to minimize downtime
Can be launched with any load condition: No load, full load or half load.
Can equipped with Infrared Measurement (option)
Can communicate with PLC or CNC control system
Application:
Forging & forming
Heat treatment such as hardening, , tempering, annealing and etc.
Melting for aluminum, copper etc
Pipe Pre-heating before welding
Stress relieving coating and cure for post coating
Pipe Bending
Optional:
Temperature control system enhance heating precise
Automatic transmission
External cooling system--DI Water cooling system or chiller, enhance good reliability of induction machine
|
Power Output |
400KW |
|
Oscillating Frequency |
0.5KHz--8KHz |
|
Input Power capacity |
500KVA |
|
Input Voltage |
380V/50Hz |
|
Operation Voltage |
340V-430V |
|
Input Current |
650A |
|
Duty cycle |
100% |
|
Cooling Water Flow |
25--35m3/h |
|
Weight |
340kg |
|
Dimension |
920X930X2080 |
Chengdu Duolin Electric Co., Ltd, is the first company in China to professional design and manufacture medium, high and ultrasonic frequency induction heating machine. Now our company is expanded to over 10, 000m2 modern production and two plants, more than 200 employees, forty branch offices all over China.
With annual throughput more than 5, 000 sets, our products are sold not only in China but also oversea such as India, Pakistan, Vietnam, Malaysia, Singapore, Russia, Australian, America, Romania, Bulgaria and South Africa, etc.
