Certificate:
CE
Machine Size:
9*1.6*1.6m
Machine Weight:
12tons
Forming Speed:
15-20m/Min
Operation Language:
English or as Per Client`S Required
Rollers Material:
No.45 Forged Steel with Hard Chrome
Cutter Material:
Cr12 Mould Steel with Quench Treatment
Cutting Style:
Automatic Cut to Length
Shafts For Rollers:
Grand Twice, 72mm Diameter Solid Steel
Cotrol System:
Mitsubishi PLC & Converter
Forging Forming Method:
Cold Roll Forming
Product Description
Metal Forming Machine for Roofing Sheet
Why choose this metal forming machine?
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
Parameteres
Item
Specification
Material
Type
Pre-painted steel coil & galvanized coils
Thickness (mm)
0.4-0.8
Yield strength (mpa)
235-345
Roller material
45#Chrome steel
Forming speed(m/min)
About 15-20
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mold steel
Length measurement
Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi Touch screen
Main motor power (kw)
5.5 kw (Depend on final design)
Hydraulic station power
2.2 kw (Depend on final design)
Total power (kw)
7.7 kw
Uncoiler's loading capacity
Max. Capacity: 5000kgs (can be increased to be 10T)
Machine`s size
About 9*1.6*1.6m (Depend on final design)

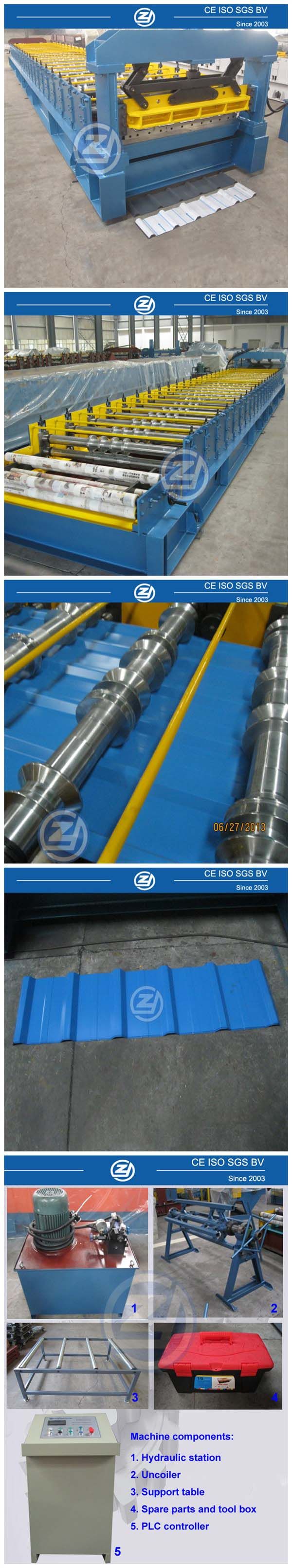

Machine components
Decoiler (manual/ hydraulic decoiler for option)
1set
Feeding & guiding device
1set
Main roll forming machine
1set
Hydraulic cutting system
1set
Controlling system
1set
Run out table (auto. Stacker for option)
1.5m/ pc, 2 pcs
Process flow: Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table

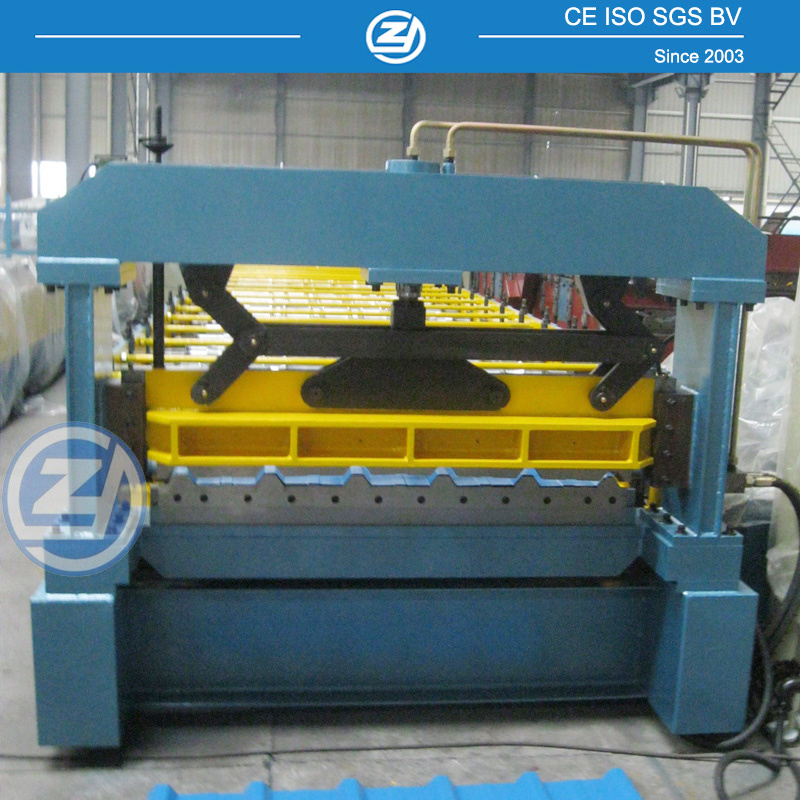

Machine overview
Why us?
About us
We are professional in making roll forming machines since 2003.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Get Free:
Provide profile drawing & design technical support FOR FREE!
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
