| Prod Model: |
MS |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
Product Description

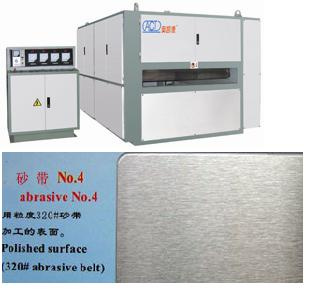

Metal sheet Corrugation Machine
Metal sheet grinding finishing polishing machine
Processing: Abrasive belt or scorch-brite grinding polishing
Materials: Stainless steel alumunium sheet or coil
Surfaces finish: No. 4, No. 6, Hairline(HL), SB
Different type: Wet type and dry type.
Custom configuration: Can build the machine to do exactly what you need.
Low Maintenance: Highest quality parts mean less down time for regular service.
Max. Working width: 400mm; 600mm; 800mm; 1000mm; 1300mm; 1600mm or others
Feed speed: 5-30m/min
Working thickness: 0.5-5mm
Main technical data: (scorch-brite type )
Machine model: MS4R-127
Working work piece: Thickness: 0.5-50mm
Length: More than 400mm
Width: 40-1270mm mm
Feed speed: 6-30m/min
Motor power
(KW): Main motors: 7.5kwX4
Feed-through motor: 3.0
Cleaning brush motor: 0.37
Air: Consumption volume: 0.9m3/min
Working pressure: 0.55MPa
Dust Exactor: Wind volume: 6500 m3/h
Pressure: 2300Pa
Wind speed: 25-30m/s
Machine size: The main machine: 2050x1650x2620mm
Control cabinet: 400x1140x850mm
Net weight: About 4, 400kgs
Machine model: MS4R-160
Work piece: Thickness: About 0.5-30mm
Length: More than 400mm
Width: 40-1580mm mm
Max. Feed speed: 15 m/min or 20m/min or 30 m/min
Motor power
(KW): Main motors: 12kwX4
Feed-through motor: 3.0
Cleaning brush motor: 0.37
Air: Consumption volume: 0.9m3/min
Working pressure: 0.55MPa
Dust Exactor: Wind volume: 7500 m3/h
Pressure: 2500Pa
Wind speed: 25-30m/s
Machine size: The main machine:
Control cabinet:
Net weight: About 4, 800kgs
Acter Enterprises Co., Ltd. located in the Coastal city of Qingdao, supplies many kinds of machinery rang from surface treatment protective machines to woodworking machine, Our main product have been exported to all over the world, such as the U. S. A, Vietnam, Thailand, Syria, Iran, Singapore., Turkey, Romanian, Slovakia, Russian. Our products catalogues: Our wide range of products includes grinding, polishing and brushing units for metals. Mainly include metal sheet surfaces grinding polishing machine(No. 3, No. 4, HL, SB), wide belt grinders (dry/wet/oil operate), the material and machine for surfaces laminating is adhesive protective film, PE protective film and film laminator laminating machine., film coating machine, film applicators; Woodworking machine included: Wood brushing machine, floor sanding machine, WPC brushing machine, wood polishing machine
We understand clearly that customers not only order the complete machinery, but also needs the good after-sales services. with years of unremitting technological innovation and marketing efforts, we have gained a positive standing in the markets and some of our news clients know our company and products through recommendations given by our current machine users.
Besides, we are offering agency services by the courtesy of our certification and qualifications.
We sincerely welcome all clients to contact us for details and we can customize the machine as your requirement.
Technological innovation
Our company's unremitting technological innovation enable us to product machine to your standards and to meet the customs' requirement. We also utilize CNC equipment to make complex and high tolerance products
Machining
Our combined facilities enable us to machine products to your standards. We utilize CNC equipment to make complex and high tolerance products
Assembling
We do many types of assembling. This will allow you to purchase a finished product rather than just a component.
Quality Control
Our inspectors test the products we sell for durability, accuracy and performance. We sell only quality products that meet or exceed your standards.
Management
The strict and order management guarantee the development of our company. The strict quality control and technological innovation enable us to make machine to you standards.
