| Prod Model: |
Lzck320-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Mv Current Trasnformer |
| Rated Voltage: |
35kv, 10kv |
| Rated Secondary Current: |
5A or 1A |
| Rated Frequency: |
50Hz or 60Hz |
| Accuracy: |
0.5s/0.5/1 |
| Burden: |
5va |
| Weight: |
1.6kg |
| Ratio: |
400/5A |
| Material: |
Cast Resin |
| Warranty: |
5 Years |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

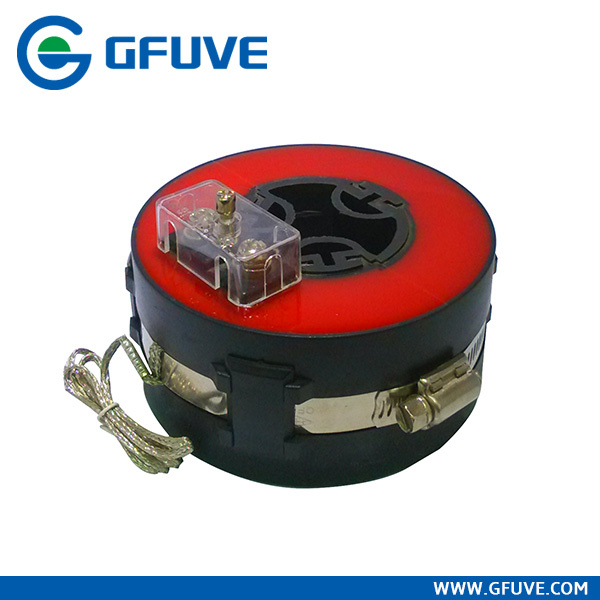

LZCK322-10 33KV Split Core MID Voltage Current Trasnformer
![]()
![]()
![]()
![]()
![]()
LZCK322-10 35KV Split Core MID Voltage Current Trasnformer applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV, and microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
Working conditions:
Ambient temperature: -35° C~+55° C, not exceeding +40° C.
The Height of above sea level: 0~ 3000m.
Atmosphere conditions: No highly polluted, errosion, erosiveness, radioactivity gases.
(continuous working under the rated current is allowed)
(P2 represents for primary polar end, S1, S2 represent for secondary polar end
P2 and S2 are subtractive polarity.
http://www.split-core-current-transformer.com/sale-9477642-outdoors-split-core-current-transformers-accuracy-class-0-5-30-600a-water-proof-ip65.html
PARAMETERS
Technical parametersMechanical parametersOperating conditions
|
| Standards | IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006 |
| Rated primary current | 30-600A |
| Rated load | ≤10VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Secondary winding power-frequency voltage | 3kV, 1min |
| Instrument security factor | FS≤10 |
|
| Dimensions (W×D×H) (mm) | φ50xφ110x52 |
| Weight (kg) | 1.6 |
|
| Operating temperature | -35°C to +55°C |
| Daily average temp | <+40°C |
| Altitude | <3500 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
TECHNICAL DATA
TypeLZCK322-10LZCK322-10PurposeMeasuring current transformerProtection current transformerRatioAccuracy class and rated load(VA)Accuracy class and rated load(VA)
|
|
|
| I1/I2 | 0.5 | 1 | 3 | 10P15 | 10P10 | 10P5 |
| 30/1 |
| 1 | 1.5 |
|
|
|
| 50/1 |
| 1 | 2 |
|
| 1.25 |
| 75/1 |
| 1.5 | 2.5 |
| 1 | 2 |
| 100/1 | 2 | 2.5 | 3 |
| 1.5 | 2.5 |
| 200/1 | 2.5 |
|
| 1.25 | 2.5 |
|
| 300/1 | 3.75 |
|
| 1.25 | 2.5 |
|
| 400/1 | 7.5 |
|
| 1.25 | 2.5 |
|
| 500/1 | 10 |
|
| 1.25 | 3 |
|
| 600/1 | 10 |
|
| 1.5 | 3 |
|
| 50/5 |
|
| 2.5 |
|
|
|
| 75/5 |
|
| 2.5 |
|
|
|
| 100/5 | 2.5 |
|
|
|
|
|
| 200/5 | 3.75 |
|
|
|
|
|
| 300/5 | 5 |
|
|
|
|
|
| 400/5 | 7.5 |
|
|
| 2.5 |
|
| 500/5 | 7.5 |
|
|
| 2.5 |
|
| 600/5 | 10 |
|
|
| 3.75 |
|
SELECTION GUIDE
ModelPrimary rated currentRated loadAperture (mm)Description (mm)Weight (kg)MaterialWater-proof
|
| LMCK055-10 | 300-1200A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP65 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP65 |
| LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | Resin | silicon case (option) |
| LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | Resin | silicon case (option) |
| LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | Resin | silicon case (option) |
| LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 2.1 | Resin | silicon case (option) |
ORDERING INFORMATION
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized.All kinds of different specifications and parameters current transformers can be made according to your needs.
