| Prod Model: |
Various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
We Dispatch Engineer |
| Input Size: |
25mm and Down |
| Certificate: |
ISO9001-2008 |
| Spare Parts: |
Supply for Whole Life |
| Bearing: |
Roller or Bush Bearing in Choice |
| Warranty: |
1 Year Apart From Wearing Parts |
| Capacity(T/H): |
1-30tph |
| Output Size: |
0-250mesh(Adjustable) |
| Discharge System: |
Overflow or Grate Type |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Type: |
Mineral Processing & Screening Equipment |
| Rotationl Speed: |
38rpm |
| Application: |
Mineral Ore |
Product Description

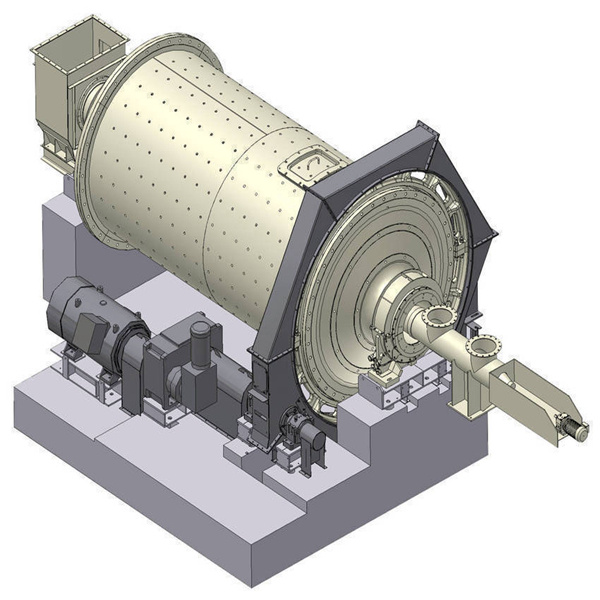

Ball Mill Introduction: Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: The dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
Ball Mill Application: The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.
Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
Ball Mill Working Principle: This ball mill is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse, there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force. Meanwhile, the steel ball is carried to some height and falls to make the material grinding and striking. After grinded coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scaleboard. In the end, the powder is discharged by output material board andthe end products are completed.
Ball Mill Features and Benefits: This machine is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control ) and so on. The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
| Specific-ation(m) | Milling form | Transmission form | Gear box | Motor power(kw) | Capacity(t/h) | Weight(t) |
| Type | Speed reduction ratio |
| Ø 1.83*7 | Open flow | Brim | ZD60 | 4.5 | 245 | 6.5-8 | 36 |
| Ø 2.2*7.5 | Circle flow | Brim | ZD70 | 5 | 380 | 8-10 | 56 |
| Ø 2.2*11 | Open flow | Central shaft | D110 | 35.5 | 630 | 12-13 | 104.6 |
| Ø 2.2*13 | Open flow | Central shaft | D110 | 35.5 | 630 | 16-18 | 114 |
| Ø 2.4*13 | Open flow | Central shaft | D110 | 35.5 | 800 | 20-23 | 171.5 |
| Ø 2.6*13 | Open flow | Central shaft | MFY100 | 19.5 | 1000 | 28-32 | 149.7 |
| Ø 3*9 | Circle flow | Brim | D125 | 41.2 | 1000 | 28-36.5 | 136.4 |
| Ø 3*11 | Circle flow | Central shaft | D140 | 42.8 | 1250 | 36-47 | 180 |
| Ø 3.2*13 | Open flow | Central shaft | D140 | 36.5 | 1600 | 45-50 | 198 |
| Ø 3.8*13 | Open flow | Central shaft | MFY250 | 16.5 | 2500 | 60-62 | 204 |
| Ø 4.2*13 | Open flow | Central shaft | JQS3550 | 15.6 | 3530 | 85-87 | 254 |
