Product Description

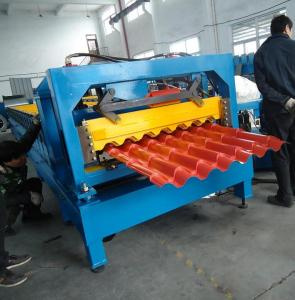

1. Components for the modular steel roof tile roll forming machine
The roll forming machine includes manual uncoiler unit, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system and run out supporting table.
2. Technical Parameters
Material Spec: Aluminum, aluzinc, galvanized and pre-painted galvanized steel sheet
Thickness: 0.3 mm to 0.7mm (perfect is 0.4mm-0.6mm)
Main motor power: 5.5 kw
Hydraulic station power: 5.5 kw
Feeding width: 1200mm
Cover width: 780mm
Coil stress: Q235 Mpa(33KSI); Maximum stress yield is Q345Mpa (50KSI)
Producing Speed: 3~4 m/min. (including the speed of step pressing and cutting)
Cutting Tolerance: ≤ ± 2.5mm ( length≤ 5000mm); ≤ ± 3mm ( 5000mm < length ≤ 10000mm)
Manual Uncoiler: Max. Capacity: 5000kgs
Stands number: At least 17 stands (17 groups of rollers)
Type of cutting: Roll-formed and length-set cutting
3. Material of Main Equipments
Roller Material: High grade No. 45 forged steel, Coating with hard chrome.
Active Shaft Material: High grade No. 45 carbon wrought steel, improved the integrated mechanic feature of the shaft.
Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
Other Elements: From famous suppliers in China.
Cutter Blade: Cr12 mould steel with quenched treatment.
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Step pressing --- Measure length --- Cutting the panel --- Panels to the supporter (option: Automatic stacker).
Botou Zhongteng Machinery factory supply all kinds of roll forming machine, our main production: colored steel roll forming machine, Gusset plate machinery, C/Z purlin forming machine, double decked roll forming machine, floor deck roll forming machine, glazed tile roll forming machine, ridge tile roll forming machine, Roof Panel Roll Forming Machine, shutter door roll forming machine, Cutting machine, Bending machine, etc. We have advanced technology and equipment, detection means is consummate, and developed the automatic intelligent production line for roll forming machine.
Our company has perfect after-sales service network, can provide full support to you, helping you get the most satisfactory equipment, and insure you get the device timely to solve all the problems in process. We always put the interests of customers in the first place, and put the concept through design to after-sales service, enables our products to help customers improve efficiency, reduce costs, enhance competitiveness, we will completely according to your requirements and needs to carry on the design and manufacturing, and give you the most ideal machine.
