Monocrystalline Diamond Die

Name: Monocrystalline Diamond Die
Brand: china-castingforging.com
SKU: 692301875
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Kingtech (KTC) Machinery Group Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shaping Mode:	Die-Casting Mould
Product Material:	Monocrystalline Diamond
Product:	Industry

Product Description

All natural diamonds are strictly selected, grinded and polished by ourselves. The production of our wire-drawing dies is based on special technical processes, which result in slighter attrition of our high-quality wire-drawing dies. Also as outcome of these special technical processes, our tungsten carbide enameling dies are characterized to have surpassing leak-tightness. Furthermore, our extrusion tips and extrusion dies are famed for their extremely high concentricity and precision.

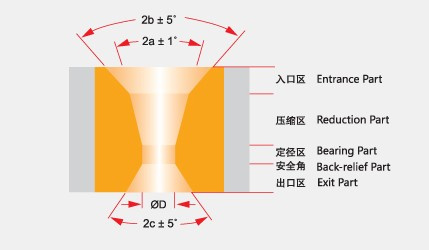

Reduction Angles & Bearing Length of Diamond Drawing Dies
Area reduction	Lead/ Zinc/ Argentine /Gold	Aluminum / Nickel / Copper	Brass / Bronze /Stainless steel	High carbon steel	Hot tungsten
5-8%	14°	10°	9°	8°	10°
8-12%	16°	12°	11°	10°	10°
12-16%	18°	14°	13°	12°	12°
16-25%	22°	18°	16°	15°	14°
25-35%	24°	22°	18°	18°	16°
Bearing length	0.2 - 0.5d		0.3 – 0.8d

Tolerance & Case of Diamond Drawing Dies
Diameter		Tolerance	Roundness	Case
inch	mm	mm	mm	mm
≤ 0.0008	≤ 0.020	0.0006	0.0003	Φ 25× 6
0.0008 – 0.0019	0.020 – 0.050	0.0006	0.0003	Φ 25× 8
0.0020 – 0.0039	0.051 – 0.100	0.001	0.0005	Φ 25× 8
0.0040 – 0.0079	0.101 – 0.200	0.001	0.0005	Φ 25× 8
0.0080 – 0.0199	0.201 – 0.500	0.0015	0.0008	Φ 25× 8
0.0200 – 0.0399	0.501 – 1.000	0.002	0.001	Φ 25× 10
0.0400 – 0.0590	1.001 – 1.500	0.0025	0.0013	Φ 25× 12
0.0591 – 0.0866	1.501 – 2.200	0.003	0.0015	Φ 25× 14
0.0867 – 0.1299	2.201 – 3.300	0.004	0.002	Φ 28× 16 Φ 30× 16
0.1300 – 0.1810	3.302 – 4.600	0.005	0.0025	Φ 28× 18 Φ 30× 18
0.1811 – 0.2164	4.601 – 5.500	0.006	0.003	Φ 43× 26
0.2165 – 0.3150	5.501 – 8.000	0.008	0.004	Φ 43× 30

KINGTECH (KTC) MACHINERY GROUP Co., Ltd was founded in 1998, with the head center is located in the financial city of mainland China, Shanghai. Since the establishment of the company, we are professional in the machinery production and sales, here, KTC products include: metal sheeting processing, metallurgical equipment. KTC have 3 factories, with the metal sheet processing in the old capital city of China Nanjing, with metallurgical equipment in Shanghai and Xi'an. Shanghai Yaoli Electrical make Co., Ltd. Xi'an metallurgical equipment Co., Ltd; It is all belongs to the developed city with good transportation condition.
