| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shaping Mode: |
Die-Casting Mould |
| Product Material: |
Diamond |
| Product: |
Industry |
Product Description

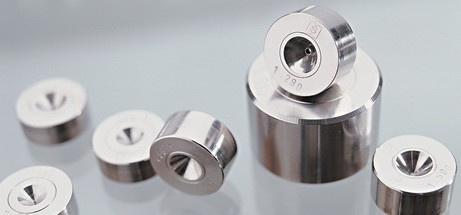

All natural diamonds are strictly selected, grinded and polished by ourselves. The production of our wire-drawing dies is based on special technical processes, which result in slighter attrition of our high-quality wire-drawing dies. Also as outcome of these special technical processes, our tungsten carbide enameling dies are characterized to have surpassing leak-tightness. Furthermore, our extrusion tips and extrusion dies are famed for their extremely high concentricity and precision.
|
Reduction Angles & Bearing Length of Diamond Drawing Dies |
|
Area reduction |
Lead/ Zinc/
Argentine /Gold |
Aluminum / Nickel / Copper |
Brass / Bronze /Stainless steel |
High carbon steel |
Hot tungsten |
|
5-8% |
14° |
10° |
9° |
8° |
10° |
|
8-12% |
16° |
12° |
11° |
10° |
10° |
|
12-16% |
18° |
14° |
13° |
12° |
12° |
|
16-25% |
22° |
18° |
16° |
15° |
14° |
|
25-35% |
24° |
22° |
18° |
18° |
16° |
|
Bearing length |
0.2 - 0.5d |
0.3 – 0.8d |
Tolerance & Case of Diamond Drawing Dies
|
|
Diameter |
Tolerance |
Roundness |
Case |
|
inch |
mm |
mm |
mm |
mm |
|
≤ 0.0008 |
≤ 0.020 |
0.0006 |
0.0003 |
Φ 25× 6 |
|
0.0008 – 0.0019 |
0.020 – 0.050 |
0.0006 |
0.0003 |
Φ 25× 8 |
|
0.0020 – 0.0039 |
0.051 – 0.100 |
0.001 |
0.0005 |
Φ 25× 8 |
|
0.0040 – 0.0079 |
0.101 – 0.200 |
0.001 |
0.0005 |
Φ 25× 8 |
|
0.0080 – 0.0199 |
0.201 – 0.500 |
0.0015 |
0.0008 |
Φ 25× 8 |
|
0.0200 – 0.0399 |
0.501 – 1.000 |
0.002 |
0.001 |
Φ 25× 10 |
|
0.0400 – 0.0590 |
1.001 – 1.500 |
0.0025 |
0.0013 |
Φ 25× 12 |
|
0.0591 – 0.0866 |
1.501 – 2.200 |
0.003 |
0.0015 |
Φ 25× 14 |
|
0.0867 – 0.1299 |
2.201 – 3.300 |
0.004 |
0.002 |
Φ 28× 16
Φ 30× 16 |
|
0.1300 – 0.1810 |
3.302 – 4.600 |
0.005 |
0.0025 |
Φ 28× 18
Φ 30× 18 |
|
0.1811 – 0.2164 |
4.601 – 5.500 |
0.006 |
0.003 |
Φ 43× 26 |
|
0.2165 – 0.3150 |
5.501 – 8.000 |
0.008 |
0.004 |
Φ 43× 30 |
