| Prod Model: |
W12-60*3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
W12-60*3200 |
| Color: |
Red |
| System: |
Hydraulic |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

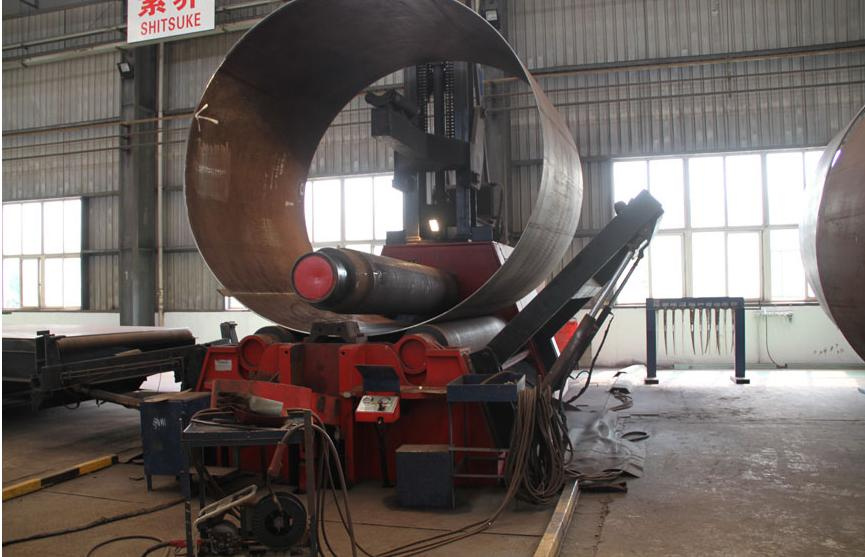

NC ydraulic plate machine
1. Superiority and some features usually only in large size plate rolling machine:
2. Fully hydraulic-driven (as opposed to the usual manual and mechanical movement)
3. Multiple independent hydraulic motor (as opposed to only one set of electric motors, reduction unit and gear)
4. Automatic hydraulic line speed compensation (as distinct from inefficient clutch)
5. Clamping pressure control (as opposed to holding without control)
Machine model options
1. Roller surface hardened
2. Hydraulic roller cone winding attachment
3. Surface finishing
4. Hydraulic top support system
5. Hydraulic side pressure
6. Brace perimeter security fence
7. CNC control system
8. Automatically oil cooler
Model standard device
1. LCD digital electronic reading devices
2. Two clamping pressure rollers, driven by two independent hydraulic motor
3. Driven hydraulic front controller more speed,
4. Control of the entire machine
5. Emergency security emergency stop
Following users apply to use the machine
1. First use of the user, because this is one of the most easy-to-operate machine
2. Operators lack of inspection requires high productivity,
3. Increase profitability requires high accuracy,
4. Improving quality want only one operator, reducing labor costs
5. Due to the large size of the Board, production of high-or for security reasons require handling device
6. Want to use CNC operations, reduce operational personnel action levels think factor.
|
HDLW12 four roller plate rolling machine technical parameters |
|
Model |
Max pre-bending thickness(mm) |
Max bending thickness(mm) |
Diameter of
upper roller
(mm) |
Max plate width(mm) |
Main motor power(kw) |
|
HDLW12-10x1500 |
8 |
10 |
250 |
1500 |
11 |
|
HDLW12-12x2000 |
10 |
12 |
260 |
2000 |
15 |
|
HDLW12-16x2000 |
12 |
16 |
275 |
2000 |
18.5 |
|
HDLW12-20x2000 |
16 |
20 |
280 |
2000 |
18.5 |
|
HDLW12-25x2000 |
20 |
25 |
350 |
2000 |
22 |
|
HDLW12-30x2000 |
25 |
30 |
380 |
2000 |
37 |
|
HDLW12-25x2500 |
20 |
25 |
400 |
2500 |
37 |
|
HDLW12-30x2500 |
25 |
30 |
400 |
2500 |
37 |
|
HDLW12-30x3000 |
25 |
30 |
480 |
3000 |
45 |
|
HDLW12-40x3000 |
32 |
40 |
550 |
3000 |
55 |
|
HDLW12-50x3000 |
40 |
50 |
610 |
3000 |
55 |
|
HDLW12-60x3000 |
50 |
60 |
670 |
3000 |
75 |
|
HDLW12-70x3000 |
60 |
70 |
730 |
3000 |
75 |
|
HDLW12-80x3000 |
65 |
80 |
780 |
3000 |
90 |
|
HDLW12-90x3000 |
75 |
90 |
820 |
3000 |
90 |
|
HDLW12-100x3000 |
80 |
100 |
880 |
3000 |
110 |
Nantong Shengli Heavy Machine Manufacturing Co., Ltd. is a professional machinery manufacturing company which is engaged in the research and development of rolling machines(W11S, W11, W12series), shearing machines(QC11Y series) and press brake(WC67Y), tube benders and other project large scale machineries. Located in Nantong, Jiangsu Province, China
In recent years, our company has been focusing on the principles of "people-first" and aims to manufacture products in line with ISO2000: 9001, CE international management standards. We strengthen management and keep the overall capability in this industry, and the quality of our product has been greatly improved. Our advantages lie at quality, prices and services
Our company owns the import and export licenses. Our products are mainly exported to Asia, America and Europe. Our company has won the recognitions from foreign and domestic customers with good quality and has established long-term co-operative relationships with them.
We are willing to provide the most satisfactory services for customers around the world and sincerely welcome foreign and domestic friends to visit our company and co-operate on win-win situations.
