Prod Model: |
ZJJ20D-B008 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Paper Roll Clamp |
Capacity: |
2000kgs |
Type: |
a |
Mounting Class: |
II |
Monting Angle: |
0 Degree |
Long Arm Length: |
825mm |
Short Arm Length: |
570mm |
Long Arm Thickness: |
45mm |
Vcg: |
343mm |
Weight: |
652kgs |
Product Description

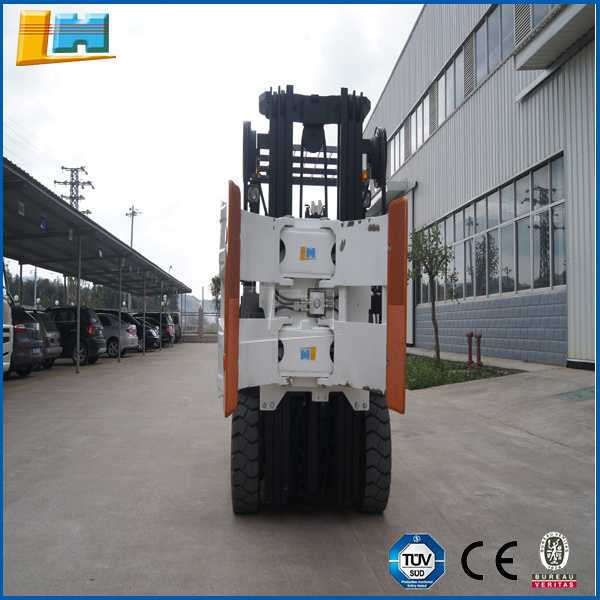

Forklift Parts CE New Design Paper Roll Clamp In Forklift
LH Forklift Steel Paper Roll Clamp
Funtions & Applications
Designed for mills, warehouses, printers, newspaper publishers and converters.
Features:
1, Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.
2, Thin arm profile and smooth arm contour easies roll breakout and permits close stacking.
3, Contact pads with integral casting structure, abrasion resistance, long service life. Contact pads surface reasonable, provide the best clamping friction.
4, Continuous 360`rotation, any angle position of lock function, revolving positing 90` or 180 .
5, Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.
Capacity (kg) | Roll Range (mm | Catalog Order No. | Type | Mounting Class | Mounting Angle | Long Arm Thickness A (mm) | Short Arm Length B (mm) | Long Arm Thickness C (mm) | Vertical Center of Gravity VCG (mm) | Weight (kg) | Effective Thickness ET (mm) | Horizontal Center of Gravity HCG (mm) |
|
|
|
1200 | 410-1300 | ZJJ12D-B001 | A | II | 0 | 820 | 570 | 45 | 280 | 390 | 150 | 250 |
1700 | 750-1810 | ZJJ17D-C001 | A | III | 0° | 1175 | 795 | 85 | 405 | 880 | 256 | 345 |
1700 | 400-1810 | ZJJ17D-C002 | B | III | 0° | 1175 | 795 | 85 | 405 | 886 | 256 | 345 |
2000 | 530-1500 | ZJJ20D-B004/C004 | A | II/III | 0° | 955 | 775 | 95 | 343 | 768 | 205/256 | 304 |
2000 | 250-1500 | ZJJ20D-B005/C005 | B | II/III | 0° | 955 | 775 | 95 | 343 | 782 | 205/304 | 307 |
2000 | 630-1600 | ZJJ20D-B006/C006 | A | II/III | 0° | 955 | 775 | 95 | 343 | 765 | 205/256 | 301 |
2000 | 350-1600 | ZJJ20D-B007/C007 | B | II/III | 0° | 955 | 775 | 95 | 343 | 775 | 205/256 | 304 |
2000 | 330-1350 | ZJJ20D-B020/C020 | B | II/III | 0° | 835 | 550 | 60 | 343 | 730 | 256 | 307 |
2000 | 630-1350 | ZJJ20D-B021/C021 | A | II/III | 0° | 835 | 550 | 60 | 343 | 720 | 256 | 307 |
2000 | 250-1300 | ZJJ20D-B024/C024 | B | II/III | 0° | 835 | 550 | 60 | 343 | 732 | 256 | 307 |
2000 | 600-1300 | ZJJ20D-B025/C025 | A | II/III | 0° | 835 | 550 | 60 | 343 | 722 | 256 | 307 |
2700 | 590-1350 | ZJJ27D-C002 | A | III | 0° | 850 | 570 | 65 | 343 | 752 | 197 | 272 |
2700 | 310-1350 | ZJJ27D-C003 | B | III | 0° | 850 | 570 | 65 | 343 | 759 | 197 | 272 |
2700 | 250-1520 | ZJJ27D-C004 | B | III | 0° | 955 | 685 | 50 | 343 | 823 | 197 | 307 |
2700 | 560-1520 | ZJJ27D-C005 | A | III | 0° | 955 | 685 | 50 | 343 | 875 | 197 | 307 |
2700 | 250-1620 | ZJJ27D-C006 | A | III | 0° | 1030 | 856 | 50 | 343 | 895 | 197 | 307 |
2700 | 560-1620 | ZJJ27D-C07 | B | III | 0° | 1030 | 856 | 50 | 343 | 830 | 197 | 307 |
3500 | 490-1520 | ZJJ35D-C001/D001 | A | III/IV | 0 | 1000 | 772 | 65 | 500 | 1205 | 221 | 320 |
3500 | 250-1520 | ZJJ35D-C002/D002 | B | III/IV | 0 | 1000 | 772 | 65 | 500 | 1215 | 221 | 320 |
