| Prod Model: |
DX 980/915 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

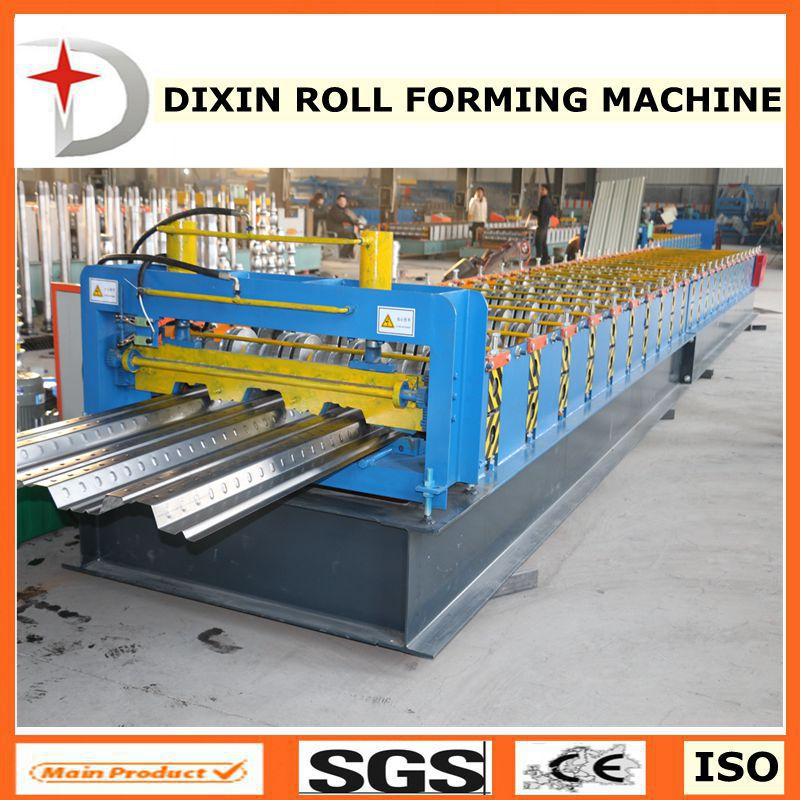

New Machine 2015 Floor Deck Roll Forming Machine |
| Roller: |
24rollers |
| Dimensions: |
10*1.45*1.51m |
| Power: |
7.5+5.5kw |
| Thickness Of The Plate: |
0.8-1.2mm |
| Productivity: |
8-10m/Min |
| Material Of The Cutting Blade: |
Cr12 |
| Diameter Of The Roller: |
70mm |
| Weight: |
About 6.8t |
| Voltage: |
380V 50Hz 3phases |
| Forging Forming Method: |
Mold Forging |
Product Description
new machine 2015 floor deck roll forming machine:
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1000mm,1200mm |
3 |
Roller |
26rollers |
4 |
Dimensions |
10*1.45*1.51m |
5 |
Power |
7.5+5.5kw |
6 |
Thickness of the plate |
0.8-1.2mm |
7 |
Productivity |
8-10m/min |
8 |
Material of the cutting blade |
Cr12 |
9 |
Diameter of the roller |
Φ70mm |
10 |
Weight |
About 6.8T |
11 |
Voltage |
380V 50Hz 3phases |
12 |
Control system |
PLC control |
Working flow:
manual uncoiler-roll forming machine-computer control system-hydraulic system-forming part-cutting part-discharge table
No
Technical Specification
1
Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm
2
Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3
Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4
Hydraulic System
Computer Control Cabinet
Power:5.5kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:EURA
5
Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
6
Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China
Our Services
First,we can produce the special machine,send your drawing to us,we can design for you.
Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.
Four,engineers available to service machinery overseas.
Five, if you come to visit our factory,we can book the room for you,car pick up to send.
FAQ
1. Q: Are you manufacture or trading company?
A: We are manufacture who was signed in 2008. And our boss has ten years' experience in machinery.
2. Q: When did u start producing roll forming machine?
A: Our company was signed in 2008, and our boss has ten years' experience of machinery.
3. Q: Why should I choose you?
A: We have years' experience to design and provide lower price for customer.
4. Q: How many kinds of products do you produce?
A: We have produced dozens shape of panels including trapizoid, glazed, roof ridge and door panel, and so on for customers during last years. We also provide EPS and rock wool panel line.
5. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Botou, Hebei province. We could pick you up from Cangzhou Station or Beijing airport when you come.
Any other question,please feel free to contact me. Tel:+86 18231737651
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
