| Prod Model: |
861 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Container Plate Roll Forming Machine |
| Control System: |
PLC Delta Inverter |
| Main Frame: |
300mm H-Beam |
| Main Power: |
11 Kw |
| Pump Power: |
15 Kw |
| Power Supply: |
380V, 3-Phase,50Hz |
| Roll Station: |
16 Stands |
| Roller Diameter: |
80mm |
| Hydraulic Pressure: |
18-20MPa |
| Forming Size: |
861mm |
| Forging Forming Method: |
Mold Forging |
Product Description

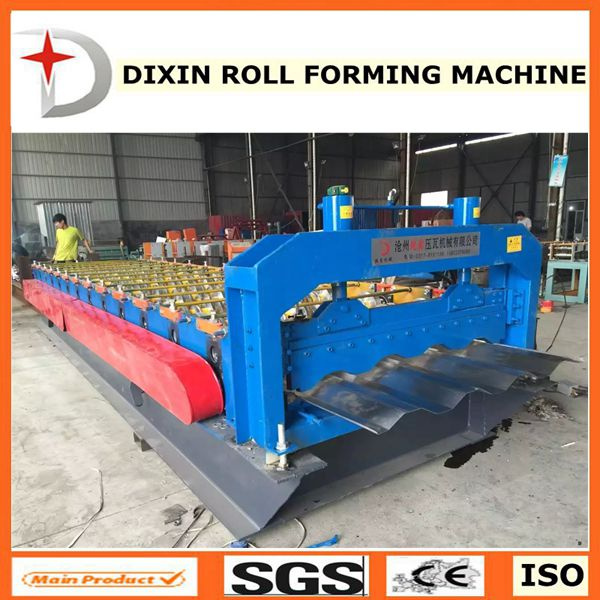

container plate roll forming machine
This machine is made up of roll forming machine,cutting machine,PLC computer control and hydraulic system
The machine is stable,no noise,no shake
Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenance-free
cutting machine is characterized by stable driving, easy operation
hydraulic system use the KB-10 hydraulic pump, long operating life,no noise
this machine is applies to car platform
Large-Size Car Panel Roll Forming Machine
Model:576 Car Panel
Configurations |
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
Control System |
PLC Delta Inverter |
Main Frame |
300mm H-Beam |
Main Power |
11 kw |
Pump Power |
15 kw |
Power Supply |
380V, 3-Phase,50Hz |
Forming Speed |
10m/min |
Roll Station |
16 stands |
Roller Diameter |
80mm |
Hydraulic Pressure |
18-20MPa |
Forming Size |
576 mm |
Feeding Thickness |
0.8-1.6mm |
Feeding Width |
1000mm |
Backboard Thickness |
20mm |
Chain Size |
52mm |
Cutter Standard |
Cr12 |
Roller Standard |
Cr12 |
Cr-Plating Size |
0.05mm |
Overall Size |
10000×1300×1500mm |
Total Weight |
9T |
All technical parameters can be changed,according to user s need.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
