| Prod Model: |
As your drawing |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Grating Manhole Covers/Manhole Cover |
| Use: |
Construction and Public Use |
| Shape: |
Round,Square,etc. |
| Dimensions: |
as Your Requirement |
| Quality Control: |
100% Inspected |
| Advantages: |
Within 20 Days After Receiving Last Confirm Info |
| Unique: |
China Gold Supplier |
| Supply: |
Drawing Design |
| Castig Type: |
Sand Casting, Precision Casting |
| Standard Or Nonstandard: |
Nonstandard |
| Type: |
Chemical Hardening Sand |
| Application: |
Manhole Cover for Parking,Road |
| Machining: |
Sand Casting |
Product Description

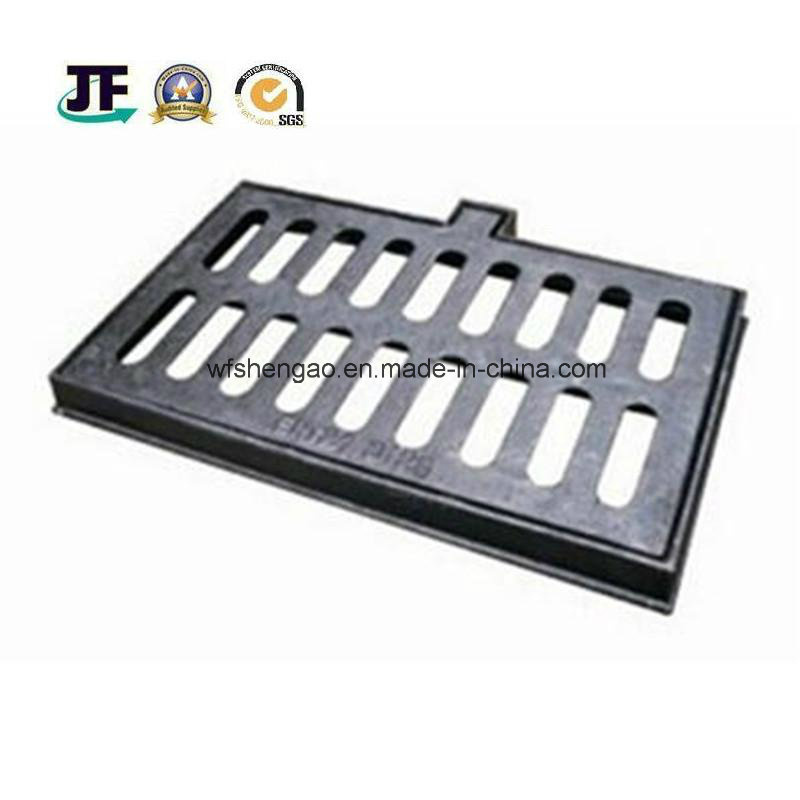

Ductile Iron Manhole Covers with Sand Casting
| Item: Drain,Grating,Manhole Cover |
| Materail:Cast Gray Iron,Ductile Iron |
| Shape:Round,Square,Rectangle,and Triangle |
| Process:Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
| Size range 200mm to 1200mm,Weight range 7kgs-154kgs |
| Surface treatment:Spray coated,Epoxy,Painted,Enamel etc. |
| Certificate:ISO9001:2000,SGS |
| Class:A15,B125,C250,D400,E600,F900 |
|
1)Specifications
Ductile Iron Sand Casting Manhole Covers:
1. Process: Sand Casting, Investment Casting (Precision Casting/Lost-Wax Casting).
2. Casting experience: 10years, OEM service available
3. Surface: Blackening, galvanize, plating, painting, etc.
4. Material: QT, iron, steel
5. Technology: Sand casting
6. Advantages: Delivery on time, according to the demand for materials
7. Packing: Wooden case or as your requirement.
8. Deliverywithin 20 days after receiving last confirm information.
9. Production Capacity: Sand Casting 2000 tons per month, Investment Casting 120 tons per month.
10. Certification: ISO 9001: 2008.
Details:
A. Item: Manhole cover
B. Drawing: As your requirement
C. Surface: Blackening, galvanize, plating, painting, etc.
D. Material: QT, iron, steel
E. Product: Manhole cover, pipe fitting, flange, machine parts, pump parts, etc.
F. Technology: Sand casting
G. Advantages: Delivery on time, according to the demand for materials
H. Packing: Wooden case or as your requirement.
I. Deliverywithin 20 days after receiving last confirm information.
2)Manufacturing process
1. Sample or Drawing by customer
2. Tooling proposal&Discussion
3.3D Tooling Design
4. Tooling production
5. Rough parts manufacturer
6. CNC Machining
7. Fitting&Finish
8. Tooling Measurement&Check
9. Assembly
10. Trial Production
11. Correction
12. Final Trial
13. Samples Inspection
14. Sample Approval by customer
15. Tooling Approval
16. Ductile iron sand casting
3)Company Profile:
We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
4)Typical products:
Scaffold fittings, Template parts, Railway fittings, ring flange, electromagnetic steel cover, piston, pressure plate, center plate, wear plate, cylinder, impeller, disc etc.
5)quality Control
Quality First, Pric Best, Service Foremost!
We assure you of our best services at all times!
| ProductsParameters |
| DrainGrating |
| Longext.FrameAxB(mm) | LongcoverLxL(mm) | Height(mm) | sub-holessize | EN124Class |
| 420x220 | 400x200 | 20 | 100x10 | B125 |
| 500x300 | 480x280 | 20 | 100x10 | B125 |
| 500x500 | 480x480 | 40 | 90x10 | B125 |
| 600x400 | 580x380 | 50 | 200x10 | B125 |
| 500x300 | 480x280 | 150 | 100x10 | C250 |
| 500x500 | 480x480 | 130 | 100x10 | C250 |
| 510x300 | 490x280 | 130 | 100x10 | C250 |
| 550x300 | 530x280 | 95 | 100x10 | D400 |
| 500x500 | 480x480 | 130 | 90x10 | D400 |
| 600x400 | 580x380 | 160 | 200x10 | D400 |
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
