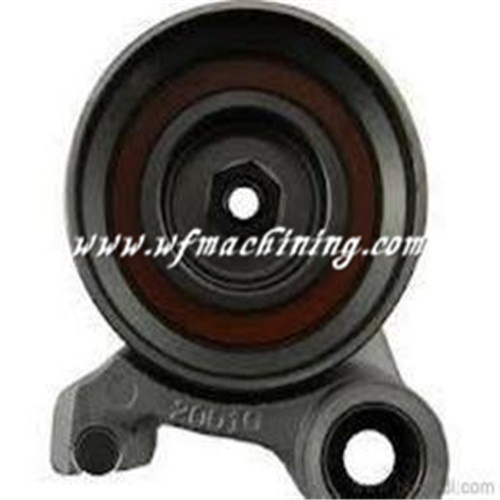

OEM Permanent Sand Mold Casting for Belt Pulley
Production Specification:
1.Material: GGG40.
2.Size:CN150X150mm.
3.Weight:3.4kg.
4.Technological process: Sand casting+CNC Machining.
5.Inspection: mechanical properties, leaking free test conducted by in-house or third party
6.Use: Submersible pump body .
OEM Permanent Sand Mold Casting for Belt Pulley
production capacity :
1.Casting classification:Sand casting;Precision casting;Vacuum process casting etc.
2.gray iron, ductile iron, stainless steel ,carbon steel,alloy steel, etc.
3. Adoption standard: BS,DIN,ASTM GB etc.
4. Weight range:0.5~5000kg.
5. Producing capacity : 2,000 tons per month .
6. Main application: Metallurgy;Machinery;Plastics;Rubber;Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces;heat treatment furnaces;direct-reading spectrometer;shot -blasting equipments, etc.
8. Surface treatment: polishing,plating,shot blasting,heat treatment ,etc
9. Inspection and test: Foundry in home,third part inspection,Material report,UT, MT, RT, and PT,etc..
10. Packing and shipping : Stand export packing;20day make modul & sample;delivery time against your quantity.
11. Casting service: your logo, character, trade name, number etc can be casted on the surface clearly.
OEM Permanent Sand Mold Casting for Belt Pulley
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Permanent Sand Mold Casting for Belt Pulley
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Permanent Sand Mold Casting for Belt Pulley
| feature | - TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope |
| annual casting capacity | 40,000tons |
| unit weight of casting | from 0.1kg/pc till 120kg/pc |
| material spec. | various grade nodular cast iron and grey cast iron |
| we are currently casting | - Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1 |
OEM Permanent Sand Mold Casting for Belt Pulley
Sand Casting Parts
Sand Casting Process:
