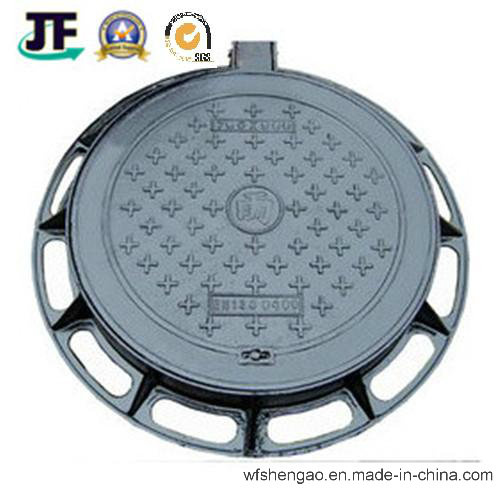

OEM Round Ductile Iron Manhole Cover with SGS Certified

Prod Model:	WF-JF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Shandong,China
Use:	Construction and Public Use
Shape:	Round,Square,etc.
Dimensions:	Dimensions
Welcome:	Custom Forging Parts
Quality Certification:	ISO9001:2008,AISI,CE,Leo,SGS
Delivery Time:	30days After Payment
Best Products:	Best Price
Machining Service:	Your Logo,Charactor,Trade Name,Number
Quation Lead Time:	Within 24 Hours
Type:	Clay Dry Sand

Product Description

OEM Round Ductile Iron Manhole Cover with SGS Certified

Specifications:
1) Ductile Cast Iron D400 Manhole Cover with Round Frame (DN600)
1.Process: Sand Casting, Investment Casting  (Precision Casting/Lost-Wax Casting).
2.Casting experience: 10years,OEM service available
3.Surface: blackening, galvanize, plating,painting,etc.
4.Material: QT, iron, steel
5.Technology: sand casting
6.Advantages: Delivery on time,  according to the demand for materials
7.Packing: wooden case or as your requirement.
8.Deliverywithin 20 days after receiving last confirm information.
9.Production Capacity: Sand Casting 2000 tons per month,Investment Casting 120 tons per month.
10.Certification: ISO 9001:2008.

2)Manufacturing process
1.Sample or Drawing by customer
2.Tooling proposal&Discussion
3.3D Tooling Design
4.Tooling production
5.Rough parts manufacturer
6.CNC Machining
7.Fitting&Finish
8.Tooling Measurement&Check
9.Assembly
10.Trial Production
11.Correction
12.Final Trial
13.Samples Inspection
14.Sample Approval by customer
15.Tooling Approval
16.Ductile iron sand casting

OEM Round Ductile Iron Manhole Cover with SGS Certified

Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.

Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden  pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.

1. Advantage of our Manhole Covers
   1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
   2) Against theft and safety, double sealed, watertight type
   3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
   4)Free charge of design.
   5) 3 day pay for ready if the request in storck.

2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
  a) Automatic machine lines
  b) Moulding boards
  c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.

OEM Round Ductile Iron Manhole Cover with SGS Certified

Item	Description	Material	Technical Process
1	Ductile iron castings	ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03; DIN-GGG40,GGG50,GGG60,GGG70; JIS-FCD40,FCD50,FCD60,FCD70; BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2; NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
2	Grey iron castings	ASTM A48-No.20,25,30,35,40,45,50; ASTM A126-Class A, Class B, Class C; DIN-GG10,GG15,GG20,GG25,GG30,GG35; JIS-FC10,FC15,FC20,FC25,FC30,FC35; BS-Grade 150,180,220,260,300,350; NF-FGL150,FGL200,FGL250,FGL300,FGL350;	Green-sand moulding Resin-sand moulding Lost foam cast Shell-core cast Electric-furnace smelting
3	Carbon steel castings	ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC; ASTM-415-205, 450-240, 485-275, 80-40; DIN- GS-C25(1.0619), GS-38(1.0416), GS-45(1.0446), GS-52(1.0552), GS-60(1.0558); JIS-SC410, SC450, SC480, SCC5; BS-A1, A2, A5; NF-GE230, GE280, GE320, GE370	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Lost foam cast Shell-core cast Electric-furnace smelting
4	Stainless steel castings	ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304; DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001) G-X20Cr14(1.4027), 1.4408; JIS-SCS13, SCS 1, SCS 2, SCS 14A; BS-304C15, 410C21, 420C29, 316, 304; NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting
5	Alloy steel castings	DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120); GS-37MnSi5(1.5122), GS-34CrMo4(1.7220); JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3; ASTM-LCC UNS-J02505, J13048 NF-G20M6, G35CrMo4	Soluble glass sand moulding Resin-sand moulding Lost wax casting (Investment casting) Electric-furnace smelting


Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.

Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.

Q: Do you provide customized manhole covers?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.

Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.


If there's anything I can help, please feel free to contact with me.
