Prod Model: |
WF-JF |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
OEM Sand Iron Casting Manhole Cover with ISO Certi |
Raw Material: |
Ductile Iron, Cast Iron, Qt500 |
Size: |
Dn100-1000mm |
Tchincs: |
Casting |
Brand Name: |
Shengao,OEM |
Factory: |
Over 15 Years'experience |
Port: |
Qingdao |
Export Markets: |
Global |
Model No: |
OEM Casting Part |
Delivery Time: |
Within Two Weeks After Receiving Your Prepayment |
Type: |
Chemical Hardening Sand |
Product Description
OEM Sand Iron Wrought Casting Manhole Cover for Casting ManholeManhole Cover,square manhole cover,cast iron manhole cover,ductile iron manhole cover,round manhole cover,drain manhole cover,iron manhole cover,
grey iron manhole cover
Sand Casting manhole cover, Investment Casting manhole cover (Precision Casting/Lost-Wax Castingmanhole cover).2.Casting experience: 10years,OEM service available3.Surface: blackening, galvanize, plating,painting,etc.4.Material: QT, iron, steel5.Technology: sand casting6.Advantages: Delivery on time, according to the demand for materials7.Packing: wooden case or as your requirement. 8.Deliverywithin 20 days after receiving last confirm information.9.Production Capacity: Sand Casting 2000 tons per month,Investment Casting 120 tons per month.10.Certification: ISO 9001:2008.OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole1.ISO9001-2008.2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole
Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole
Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole
2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole
name | OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole |
material | ductile iron GGG50/7, gray iron |
standard | EN124/1433/1563 |
class | A15,B125,C250,D400,E600,F900 |
shape | Round |
Size | 600*600,840*840, 850*850 or as per customers' drawing |
paint | bituminous black |
advantage | Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance |
molding | DISA Line |

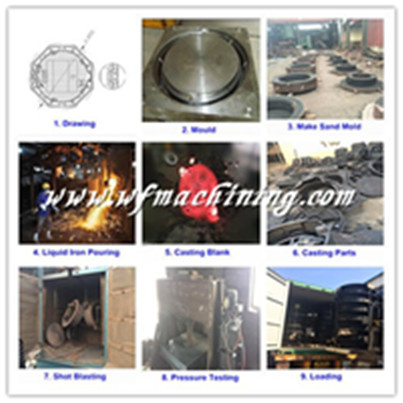

process | Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
application | footway, pedestrians, car parks, aircraft pavements |
certificate | BSI, ISO9001:2000 |
Strict quality control | Tensile strength: 500Mpa Yield stress : 320Mpa Elongation rate : 7% Hardness: HBS170-230 |
Main products | Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts |
other information | we can cast and process any type of iron casting products according to customers' drawing or samples |
Size( customized available for other dimensions)
Order No. | Inner dia | grating | Outer dia | Height | Weight(kg) | Pressure(KN) |
F0536-1 | 252 x 252 | 326 x 326 | 360 x 360 | 36 | 13.5 | C250 |
F0536-2 | 350 x 350 | 400 x 400 | 470 x 470 | 40 | 20 | C250 |
F0536-3 | 450 x 450 | 500 x 500 | 580 x 580 | 50 | 32 | C250 |
F0536-4 | 550 x 550 | 600 x 600 | 680 x 680 | 50 | 39 | C250 |
F0536-5 | 350 x 350 | 400 x 400 | 500 x 500 | 100 | 36.2 | D400 |
F0536-6 | 450 x 450 | 500 x 500 | 600 x 600 | 100 | 49 | D400 |
F0536-7 | 560 x 560 | 600 x 600 | 700 x 700 | 100 | 62 | D400 |
Material composition:
Tensile strength | 560Mpa | Yield strees | 340Mpa |
Elongation rate | 7.5% | Hardness | 210HBS |
Material | GJS500-7(GGG50) | Standard | EN 124 |
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole

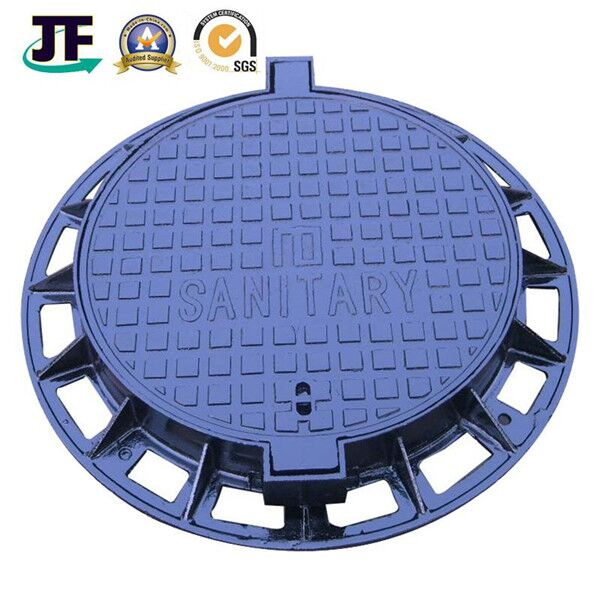

Manhole Cover:

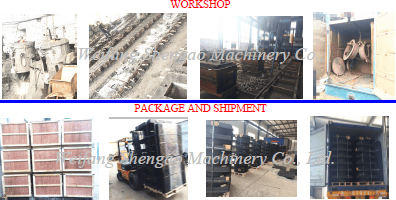

Workshop:
Quality COntrol:
Quality First,Pric Best,Service Foremost
We assure you of our best services at all times !
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole
Item | OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole |
Size | DN100-1000mm |
Surface treatment | black painted, oil, painting |
Shape | square, round |
Material | ductile iron, cast iron, QT500 |
Heat Treatment | can be as your requirement. |
Advantages | Delivery on time, according to the demand for materials |
Packing | wooden case or as your requirement. |
Delivery | within 30 days after receiving last confirm information. |
OEM Sand Iron Wrought Casting Manhole Cover for Casting Manhole
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized manhole cover?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
