| Name: |
Omega Cold Roll Forming Machine with ISO |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

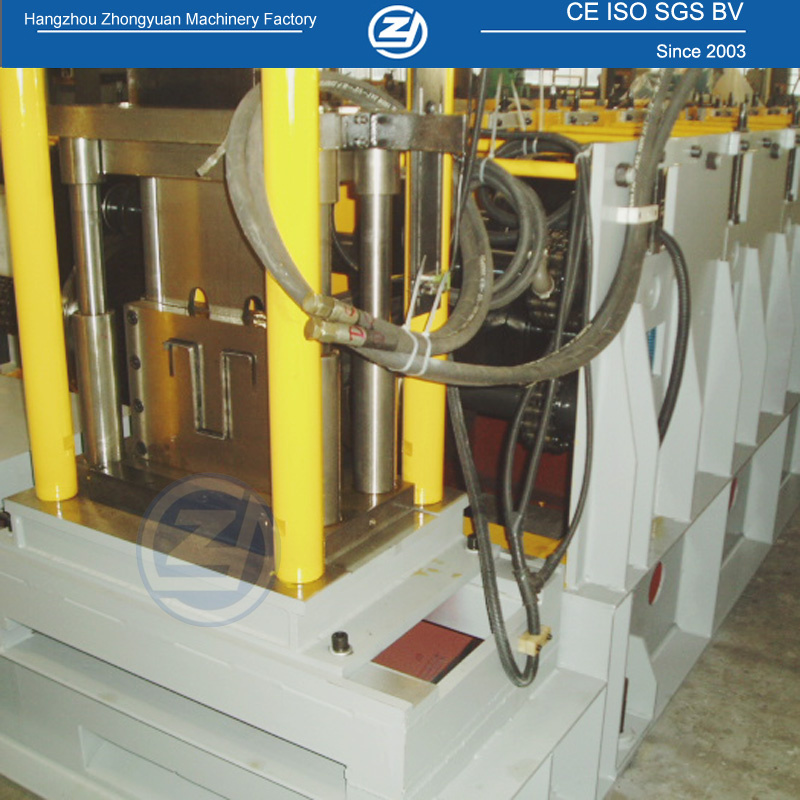

Omega Cold Roll Forming Machine with ISO
About machine:
It is used to Omega shape of product.
1. Suitable material galvanized steel sheet
2. Yield strength 235 to 350
3. Thickness 1-2.5mm
4. Forming Speed about 15m/min (excluding in cutting time)
5. Power Requirement Main motor power: About18.5Kw (Depend on final design)
6. Hydraulic station power: About 5.5Kw (Depend on final design)
7. Single-head decoiler Max. Capacity: 3000kgs
8. Control system Mitsubishi PLC and converter
9. Type of cutting after roll-formed and length-set cutting
Data sheet
| Item | Specification |
| Material | Type | Color steel sheet or galvanized steel sheet |
| Thickness(mm) | 1.5 -3.0 |
| Yield strength(mpa) | 235 -350 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 15m/min |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 18.5 KW (Depend on final design) |
| Hydraulic station power | 5.5 K W (Depend on final design) |
| Total power(kw) | 24 KW |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs |
| Machine weight | About 10500kgs |
| Machine size | About 8*1.5*1.6m (Depend on final design) |
Components of machine: |
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| PLC Controlling system | 1set |
| Run out table | 1set |
Process flow: |
| Decoiling the sheet → Leveling sheet → Roll forming → Measure length and cutting → the product run to the supporter |
