Open Die Forging Press, 16mn, Pull Down Type, Two Columns Designed

Name: Open Die Forging Press, 16mn, Pull Down Type, Two Columns Designed
Brand: china-castingforging.com
SKU: 702908852
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Ls Heavy Industry Engineering Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Open Die Forging Press
Usage:	Open Die Forging
Work:	Open Die Forging
Power:	Hydraulic Press
Forging Type:	Open Die Forging
Forging Method:	Open Die Forging
Forging Forming Method:	Free Forging

Product Description

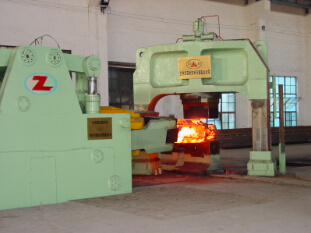

LS pull-down forging presses with two rectangular columns are directly oil-hydraulically driven. They offer a high forging speed and better visibility of the forging area for operator.

They have a casting monoblock frame ensuring a high eccentric load resistance and structure rigidity. The casting frame is also designed to have a low working stress, thus a high level of forging accuracy. All hydraulic cylinders and hydraulic stations including pumps, motors, tanks, valves, pipes are arranged under the floor. The presses can be installed in the low plant building.

The frame with low gravity center ensures a very small displacement under eccentric loading, it is also free of vibration during high speed forging work. Together with our technology in controlling proportional servo cartridge valve and replenishing & relief valve station, and special pipeline design, the sustainable high performance forging work is easily available.

Pull-down forging presses are most suitable for the installing in the insufficient workshop height required by forging capacity of the presses.

Nominal force: 6.3MN/8MN/10MN/12.5MN/16MN/20MN/25MN

16MN Forging Press

Pull-Down Press			Date
Nominal force		MN	16
Net. Daylight		mm	3075
Max. stroke		mm	1400
Clearance distance between columns		mm	2000 x 1100
Moveable table size, L.R. x F.B		mm	5000 x 1610
Moveable table stroke		mm	3000
Moveable table speed		mm/s	0-250
Stroke of bottom die shifting device		mm	2700
Table width of bottom die shifting device		mm	700
Speed of bottom die shifting device		mm/s	0-250
Allowable eccentricity		mm	≤φ320
Upper die height		mm	700
Bottom die height		mm	950
Rated working pressure		MPa	31.5
Max. approach speed		mm/s	350
Max. return speed		mm/s	350
Return force		kN	3400
Forging accuracy		mm	±1
Forging speed	Normal forging	mm/s	90
Press height	Above the floor ±0	mm	4525
Press height	Below the floor ±0	mm	5820
Normal forging	Penetration	mm	80-100
	Stroke	mm	100-150
	Frequency	strokes/min	20-45
High-speed forging	Penetration	mm	3-5
	Stroke	mm	20-25
	Frequency	strokes/min	80-85

Our Business

LS Heavy Industry Engineering is a China company experienced in the design and make of open-die forging equipment and engineering. The know-how of our company built-up in long development offers product much more performance and reliability than others. Now we are one of the leading companies in the industry field in the world.

Our Work

We have improved and dedicated expertise to develop products with the goal to meeting customers' highest expectation. No compromise on performance availability. Both economic and sustainable production for customers is always concerned.

The Quality of Our Products

We are extremely strict in the design and manufacture such as frame rigidity, column guides, eccentric load distributions, forging accuracy and speed, working safety, and electronic controls. They are very important to the whole equipment and engineering project. The manufacture and assembly combines master craftsmen and modern plant facilities. As the forerunner in China, we drafted and issued Chinese National Standard for Two Columns Open-Die Forging Press Models and Parameter, and publication "Forging Handbook"

Our Customers

Our installations can be found in nearly all important railway train plants, petrochemical equipment plants, power equipment plants, aeronautical equipment plants, and steel mills in China. They are: CSR Corporation Limited, Taiyuan Mining Machinery Group Co., Ltd, Shenyang Locomotive Factory Co., Ltd, Nanjing Steel Group, China Aerospace Science & Industry Corp., China CNR Corporation Limited, CNPC Baoji Oilfield Machinery Co., Ltd, AVIC Shangda, Inner Mongolia North Heavy Industries Group Corp. Ltd.

Our History

The predecessor of the company - LS Factory was founded in 1953, we initially produced castings, forgings and petrochemical equipments in 1965, and started the design and development of two columns open-die forging presses in 1982. Since LS Group's foundation, we have become nationally recognized for our diverse range of specialty forging equipment and machinery.

Milestones

1953 LS Factory was founded in Lanzhou City in Gansu Province by the Industry Department of China. It is the predecessor of LS Group

1982 LS Heavy Machinery was founded in Lanzhou City in Gansu Province by LS Group

1987 China's first 8MN two-column open-die forging press was manufactured by LS Heavy Machinery

1995 China's first 16MN two-column open-die forging press was manufactured by LS Heavy Machinery

2004 China's first 20MN two-column open-die forging press was manufactured by LS Heavy Machinery

2008 China's first 45MN two-column open-die forging press was manufactured by LS Heavy Machinery

2013 China's first 1.6MN radial forging machine was manufactured by LS Heavy Machinery

2014 LS Group relocated to new facilities in the Lanzhou New Area, the state-of-the-art plant covers a total area of 25, 115, 000 square feet

2014 LS Heavy Industry Engineering was founded in Zhangjiagang City in Jiangsu Province by LS Heavy Machinery for new technology development, international engineering, sales and service
