| Prod Model: |
JH21 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Front And Fixed Bed: |
Hydraulic Overload Protector |
| Model: |
Jh21 Series |
| Color: |
White and Green |
| Size: |
1280 1050 2050 |
| Weight: |
3250 |
| Forging Forming Method: |
Mold Forging |
Product Description

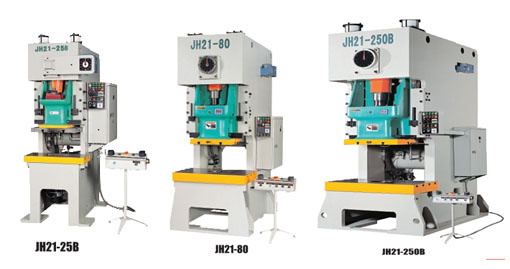

Open Type Fixed Worktable Power Punch Press Machine JH-21
1. Welded body with steel plate and high intensity.
2. Main motor is made hy Siemens.
3. Adopts combined pneumatic friction clutch and brake.
4. Cluster gear adopts the flooding oil lubrication.
5. Six-face rectangle guide; JH21-315B/400B adopts eight-face
6. Lengthen guideway.
7. Equipped with hydraulic overload protecting device.
8. JH21-25/25B/45 adopts manual shut height adjustment, among these types JH21-25/45 adopts scale display and JH21-25B with digital display. JH21-63 and above type adopts electric shut height adjustment with digital display.
9. JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
10. JH21-25B, JH21-45 and above type equipped with balance cylinder.
11. Duplex valves imported.
12. Electric compelling grease lubrication system.
13. Balancing cylinder adopts manual lubrication system.
14. One set of blowing device.
15. Controlled by PLC with international brand.
16. Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are
17. Imported from international brand.
18. Equipped with optional air cushion device, automatic feed shat and photoelectric protector,
19. Which can used to work with various automatic equipments.
| Model // CODE NO. | JH21-25 //21001 | JH21_45 //21002 | JH21-63 //21003 | JH21-80 //21004 | JH21-110 //21005 | JH21-125 //21006 | JH21-160B //21008 |
| Nominal force | kN | 250 | 450 | 630 | 800 | 1100 | 1600 | 1250 |
| Stroke under nominal force | mm | 3 | 4 | 4 | 5 | 6 | 6 | 6 |
| Slide block stroke | mm | 80 | 100 | 120 | 140 | 160 | 160 | 160 |
| Number of stroke | Fixed | min-1 | 100 | 80 | 70 | 60 | 40 | 50 | 50 |
|
| Variable | 80-120 | 70-90 | 60-80 | 50-70 | 35-50 | 40-60 | 40-60 |
|
| Max die set height | mm | 250 | 270 | 300 | 320 | 350 | 350 | 350 |
| Die set height adjustment | mm | 50 | 60 | 80 | 80 | 80 | 110 | 80 |
| Distance from slide block centre to the frame | mm | 210 | 230 | 300 | 300 | 350 | 380 | 350 |
| Worktable dimensions | mm | 400
700 | 440
810 | 580
900 | 580
1000 | 680
1150 | 740
1300 | 680
1150 |
| Dimensions of worktable hole | mm | φ170
20
φ150 | φ180
30
φ160 | φ200
40
φ180 | φ200
40
φ180 | φ260
50
φ220 | φ300
50
φ260 | φ260
50
φ220 |
| Thickness of bolster | mm | 80 | 110 | 110 | 120 | 140 | 150 | 140 |
| Hole dimensions in bed | mm | 260
250 | 300
300 | φ365 | φ365 | φ400 | φ470 | φ400 |
| Dimensions of slide block bottom surface | mm | 250
360 | 340
410 | 400
480 | 420
560 | 500
600 | 580
770 | 540
680 |
| Size of the handle hole | mm | φ40
60 | φ40
60 | φ50
80 | φ50
80 | φ60
80 | φ65
85 | φ60
80 |
| Distance between columns of body | mm | 450 | 550 | 620 | 680 | 760 | 850 | 760 |
| Main motor power | KW | 3 | 5.5 | 5.5 | 7.5 | 11 | 15 | 11 |
| Outline dimension | mm | 1280
1050
2050 | 1600
1200
2400 | 1800
1210
2520 | 1760
1280
2700 | 2010
1400
3040 | 2280
1550
3240 | 2010
1440
3050 |
| Net /gross weight | Kg | 2800
3250 | 4000
4500 | 6100
700 | 8000
9200 | 11000
12200 | 15500
17000 | 11800
13000 |
