| Prod Model: |
MDY150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Pressure: |
150~6000ton |
| Work Pressure: |
30 |
| Work Speed: |
6.2 |
| Motor: |
7.5 |
| Weight: |
2010 |
| Forging Forming Method: |
Mold Forging |
Product Description

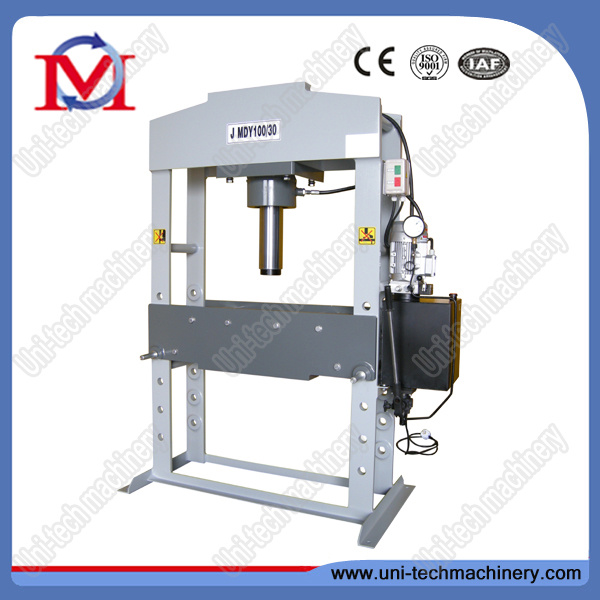

Power operated hydraulic power press machine JMDY/MDY series
Main features:
1. Weleded heavy steel frame ensures high rigidity and durability.
2. Compact structure, nice appearance, easy to operate.
3. Protective guard, reduce the accidental damage effective
4. Double acting cylinder designed with 6-part oil seals, tight seal and smooth operation.
5. The hydraulic system use well-known brand hydraulic components. The cylinder made by high quality steel, durable and reliable.
6. It has reasonable manual handle position, with auto-resetting function at hydraulic station. The pressure head can stop at any position. (CE Norms)
7. RAM has lifting chains, to move the worktable hydraulically.
Adopts China top-brand motor, and Schneider/Siemens components(CE Norms)
Specifications of Power operated hydraulic power press machine
Power operated hydraulic power press machine Machine details:
Power operated hydraulic power press machines in workshop:
| Model | Unit | MDY-30 | MDY-50 | MDY-63 | MDY-80 | MDY -100 | MDY -150 | MDY -200 | MDY -300 | MDY -500 | MDY -600 |
| Code No. |
| 709052 | 709053 | 709054 | 709055 | 709056 | 709057 | 709058 | 709059 | 709060 | 709061 |
| A | mm | 1310 | 1440 | 1570 | 1680 | 1435 | 1502 | 1630 | 1680 | 1760 | 1680 |
| B | mm | 700 | 800 | 900 | 950 | 1000 | 1070 | 1100 | 1200 | 1200 | 1200 |
| C | mm | 1885 | 1965 | 2050 | 2070 | 2210 | 2210 | 2210 | 2535 | 2630 | 2775 |
| D | mm | 700 | 800 | 900 | 1000 | 1060 | 1100 | 1150 | 1200 | 1200 | 1200 |
| E | mm | 1040 | 1075 | 1015 | 1005 | 1040 | 965 | 890 | 995 | 880 | 880 |
| F | mm | 250 | 250 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 350 |
| G | mm | 320 | 350 | 385 | 395 | 400 | 530 | 550 | 660 | 760 | 880 |
| H | mm |
|
|
|
| 440 | 440 | 440 | 500 | 550 | 550 |
| I | mm |
|
|
|
|
|
|
|
| 760 | 780 |
| Capacity | KN | 300 | 500 | 630 | 800 | 1000 | 1500 | 2000 | 3000 | 5000 | 6000 |
| Work pressure | Mpa | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 28.5 | 30 | 30 |
| Work speed | mm/s | 5 | 4 | 6.2 | 4.9 | 7.6 | 4.9 | 3.9 | 5.9 | K12.2/m2.7 | K9.9/m2.2 |
| Motor | kw | 1.5 | 2.2 | 4 | 4 | 7.5 | 7.5 | 7.5 | 22 | 15(variable) | 15(variable) |
| Oil tank | L | 55 | 55 | 55 | 55 | 135 | 135 | 135 | 170 | 275 | 275 |
| Worktable | mmxhole | 200x4 | 230x3 | 250x3 | 280x3 | 250x3 | 300x2 | 300x2 | 300x2 | Stable | Stable |
| Weight | kg | 405 | 550 | 850 | 1020 | 1380 | 2010 | 2480 | 3350 | 6980 | 7680 |
