| Prod Model: |
CW-5200AG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
1400W |
| Certi.: |
ISO9001:2008 |
| Chiller Manufaturing History: |
11 Years |
| Usage: |
for Refrigerate |
| Cooling Method: |
Direct Cooling |
| Certification: |
CE |
Product Description

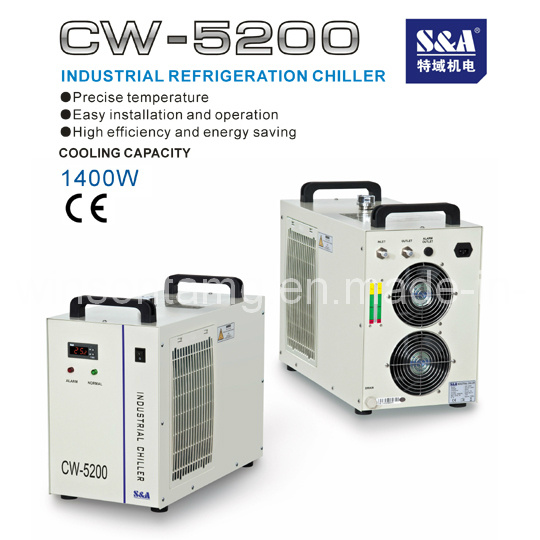

S&A CW-5200 series is high-precision compression refrigeration small water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.
CW-5200AG / BG / DG are suitable to cool Optical Spectrometer.
Features:
1.1400W cooling capacity; Optional environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ± 0.3º C precisely temperature control; ± 0.1º C is optional;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; With various setting and display functions;
5. Multiple alarm functions: Compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval;
7. Optional heater and water filter.
[Main features]
1. Major components: Use international well-known brands compressors and water pumps of large flow and high pressure; Safety and environmental protection; Energy saving and durable.
2. Accessories: The greatest parts are S&A original equipment manufacture; Multiple configurations; Stable performance.
[After-sales service]
1. High-activity processing of purchase orders; Repliable packing; Timely delivery.
2. During period of using, we provide technical infomation, accessories supply, technical maintenance service support, etc.
3.12 months warranty, during warranty period, replacement parts are free of charge; Man-made damage is not included in the free reparing scope;
4. After the expiration of guarantee, we charge the replacement parts only at material procurement costs price.
5. Our after-sales service team is consisted of trained operating personnel and R&D staff, who have professional guiding experience and are able to solve problems efficiently.
6. Domestic toll-free hotline: 400-600-2093
|
Model |
CW-5200AG |
CW-5200BG |
CW-5200DG |
CW-5200TG |
CW-5200AH |
CW-5200BH |
CW-5200DH |
CW-5200AI |
CW-5200BI |
CW-5200DI |
|
Voltage |
AC 1P 220V |
AC 1P 220V |
AC 1P 110V |
AC 1P 220V |
AC 1P 220V |
AC 1P 220V |
AC 1P 110V |
AC 1P 220V |
AC 1P 220V |
AC 1P 110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50/60 Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
|
Current |
2.4~3.1A |
2.6~3.3A |
4.5~6.5A |
2.4~3.3A |
2.4~3.1A |
2.6~3.3A |
4.5~6.5A |
2.4~3.1A |
2.6~3.3A |
4.5~6.5A |
|
Compressor power |
0.52KW |
0.5KW |
0.68KW |
0.49 / 0.57KW |
0.52KW |
0.5KW |
0.68KW |
0.52KW |
0.5KW |
0.68KW |
|
0.71HP |
0.68HP |
0.93HP |
0.66 / 0.77HP |
0.71HP |
0.68HP |
0.93HP |
0.71HP |
0.68HP |
0.93HP |
|
Refrigeration capacity |
5084Btu/h |
4982Btu/h |
5186Btu/h |
4825 / 5797 Btu/h |
5084Btu/h |
4982Btu/h |
5186Btu/h |
5084Btu/h |
4982Btu/h |
5186Btu/h |
|
1.49KW |
1.46KW |
1.52KW |
1.41 / 1.70KW |
1.49KW |
1.46KW |
1.52KW |
1.49KW |
1.46KW |
1.52KW |
|
1281Kcal/h |
1256Kcal/h |
1307Kcal/h |
1219 / 1465Kcal/h |
1281Kcal/h |
1256Kcal/h |
1307Kcal/h |
1281Kcal/h |
1256Kcal/h |
1307Kcal/h |
|
Refrigerant |
R-22 / R-134a / R-410a |
|
Refrigerant charge |
360g |
380g |
350g |
360/380g |
360g |
380g |
350g |
360g |
380g |
350g |
|
Precision |
±0.3C |
|
Reducer |
Capillary |
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
|
Pump power |
0.03KW |
0.05KW |
0.1KW |
|
Tank capacity |
6 L |
|
Inlet and outlet |
External Φ10mmbrass connector |
Φ10mm speedy connector |
|
Max. lift |
10M |
12M |
25M |
|
Max. flow |
10L/min |
13L/min |
16L/min |
|
N.W |
26Kgs |
|
G.W |
29Kgs |
|
Dimension |
58 X 29 X 47 cm (L X W X H) |
|
Package dimension |
70 X 43 X 58 cm (L X W X H) |
