| Prod Model: |
1742 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
0.5m, 1 M, 1.5 M, 2 M, Other |
| Hardness: |
Hoses |
| Dn: |
2-3mm |
| Working Pressure: |
630 Bar |
| Standards: |
GB |
| Shape: |
Round |
| Color: |
Black |
| Material: |
PA |
| Capability: |
Test Hose |
Product Description

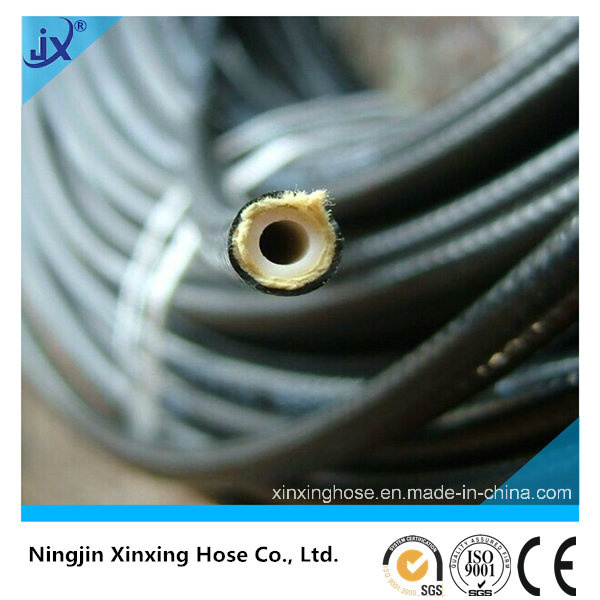

ressure test hoses
Material: PA
Reinforced layer: Kevlar Reinforced
Out layer: Polyurethane
Pressure test hoses
Pressure gauge pressure measuring hose
Material:polyurethane resin
Enhance layer; Super powerful aramid fiber;
Outer: Polyurethane elastomer. Applicable medium: Water, air, hydraulic oil etc.
Use temperature: 40 ° C- 120 ° C.
USES: Various pressure measuring and test equipment
Welcome to come to consult the discussion!
DN | I.D
(mm) | O.D
(mm) | working pressure
( Mpa) | Blasting pressure
(Mpa) | Bending radius
(mm) |
| XPA-2 | 2 | 5 | 63 | 160 | 30 |
| XPA-2.5 | 2.5 | 5.5 | 63 | 160 | 35 |
| XPA-3 | 3 | 6 | 63 | 160 | 45 |
| XPA-3 | 3 | 7 | 100 | 260 | 50 |
Company Information
Ningjin Xinxing hose Co., Ltd. is the production of polyurethane series, nylon series hose hose is mainly a business, injection molding, casting products as a supplement.The company advanced equipment, exquisite technology, complete testing equipment, have the ability to develop new products.The company to the quality of culture of excellence, and strive to build first-class brand, with "honest and trustworthy, benefit sharing" business philosophy, and establish a good corporate image
Our Advantage
(1) We can do the designs according to customers' requirements.
(2) We can open customers' own mold as per their requirements.
(3) We can offer you a good after-sell service.
(4) Prompt delivery.
Quality Testing & Packing
(1) Quality test: 100% pressure test and leakage test before packing.
(2) packing details: standard export packing or according to customer's special requirements
