Product Description

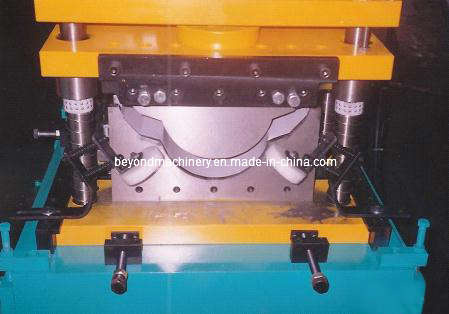

Ridge Cap roll forming Machine consists of Uncoiler and its Base, Coil Sheet Guiding Equipment, Roll Forming System, Press Equipment, Post-Cutting Equipment, Hydraulic Station, Controlling System, Supporter Table. Working Flow: Sheet Guiding - Roll Forming - Measure Length - Cutting the Panel - Panels to the Supporter.
I. Machine Features:
1. Precise Forming
2. High-solid forming stand guarantees the good and uniform high quality of final products
3. The operation automatically minimizes the tolerance of cutting length
II. Technical Parameters:
Material Spec: Colored and galvanized steel sheet at yield stress 33KSI
2. Thickness of Coil Sheet: 0.5 0.6mm
3. Coil Width: 330mm
4. Working Speed: 2.0 ~ 3.0 M/min.
5. Power Requirement: Main Motor Power 3Kw
6. Hydraulic Station Power: 5.5Kw
7. Passive Uncoiler; Max. Capacity 3000KGS
8. Quantity of Stands: 5 Groups
9. Controlling System: PLC
10. Type of Cutting: Roll-Formed and Length-Set Cutting
11. Total Weight: About 3000kg
12. Voltage: 380V 3 phase 60 Hz or at buyers requirementWe can desgin and manufacture the Roll Forming Machine according to your request
Beyond Machinery Industrial Co., Ltd is a professional supplier mainly specialized in R&D, manufacturing, sales and technical service of construction machinery, especially in the field of roll forming machine. Located in Shanghai, our company has very convenient transportation networks, about 30 min drive to Pudong International Airport and 30 minutes to Shanghai Yangshan Seaport. Our staff members have been tirelessly devoted to research and development, and have helped significantly to promote product quality and make the product quality meet international standards.
Company follows the principle of "people oriented & independent innovation", taking the aim of "quality first, faithful cooperation, professional service and reasonable price", We achieve a considerable market share in domestic and foreign markets. We have established favorable relationships with many clients in more than 20 countries in North America, East Europe, South America, Australia, Middle East, Southeast Asia and Africa.
In particular, we are a leading supplier in the field of roll forming machine and slitting machine, we can provide professional service for commissioning up, supplying raw materials, through design, final products etc. Working to extend our presence internationally, we are looking forward to cooperating with you for mutual benefits.
