Product Description

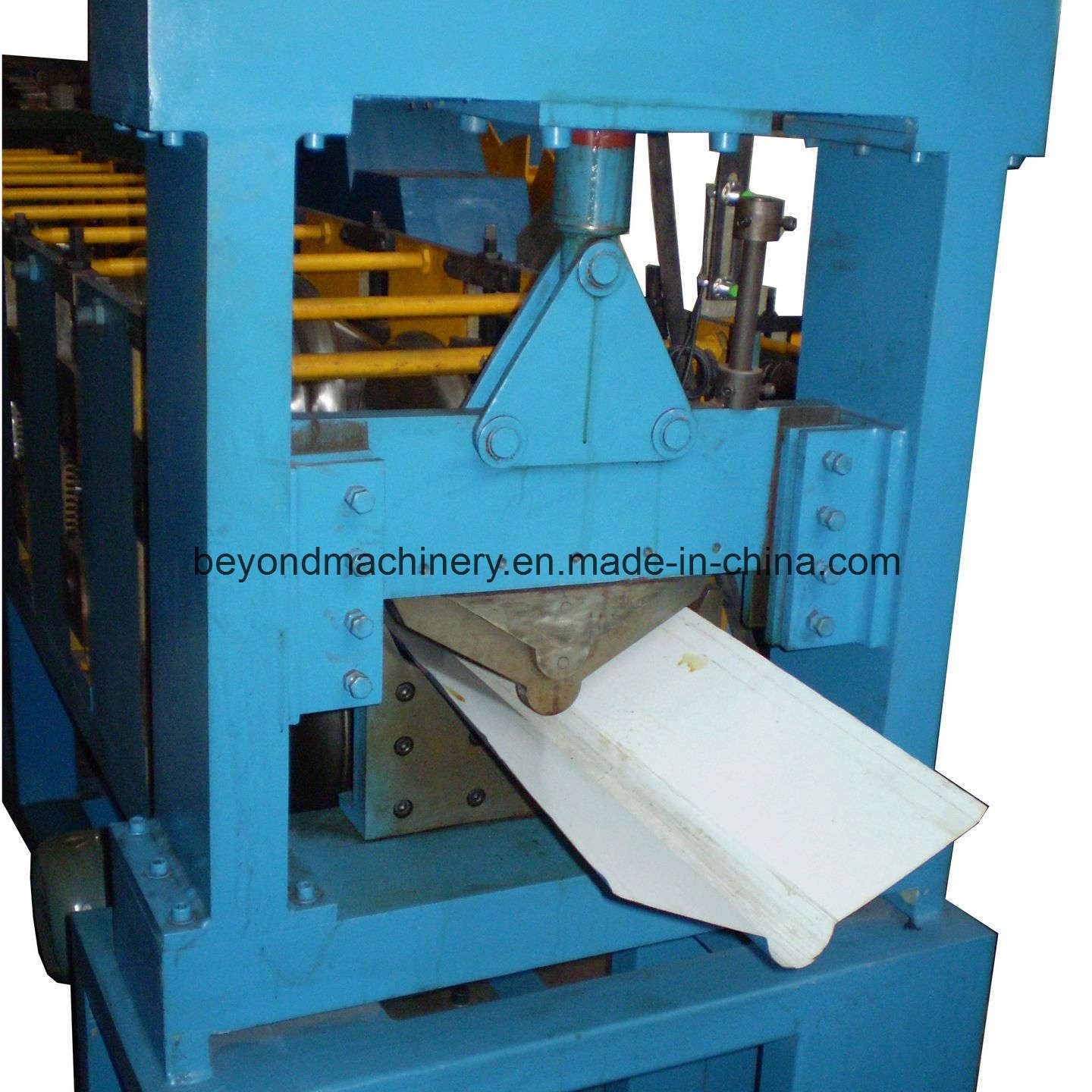

Ridge cap roll forming machine, gutter roll forming machine, roll forming machine, forming machine
I. Components
1. The simple uncoiler and base
2. Coil sheet guiding equipment
3. Roll forming system
4. Post cutting system
5. Hydraulic station
6. PLC Computer control system with touch screen
7. Supporter table
II. Technical parameters:
1. Material: Color steel sheet; Galvanized steel sheet at yield stress 33KSI
2. Coil thickness: 0.5mm to 0.6mm
3. Coil width: 1000mm, 1200mm or based on customers requirements.
4. Forming speed: 2-3 m / min.
5. Main motor power: 5.5Kw(Depend on final design)
6. Hydraulic station power: 2.2Kw(Depend on final design)
7. Controlling System: Mitsubishi PLC & converter
8. Voltage: 380V/3 phase 60Hz or according to at buyer's requirement.
9. The quantity of the roller group: At lest 15 groups(depend on final design)
10. Machine dimension: About 10m*1.3m*1.4m(depend on final design)
III. Material of Roll former system
1. Roller: High grade No. 45 forged steel, plated hard chromed on the surface of rollersWith thickness 0.05mm.
2. Active shaft material: High grade No. 45 carbon wrought steel at diameter 75mm. 3. Cutting blade: Cr12 mould steel with quenched treatment.
