| Prod Model: |
BM9L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |

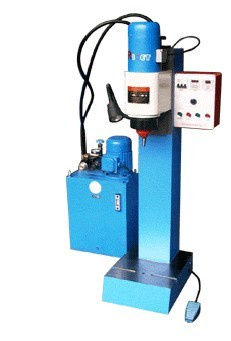

Product Description
Handily the type hydraulic designs
1. Max riveting diameter 9MM (solid steel rivet )
2. The work head can high and low be adjusted
3. Infinitely-variable pressing the hydraulic pressure drive
4. The double-bang firecracker speed is adjusted infinitely.
5. Rotation part with safe cover
6. Broadening the bench, the head go up and down
7. Electricity control and broadened bench
8. Set the riveting time at will, the hand moves and auto exchange arbitrarily.
9. Scope of application: The instrument appearance, daily expenses 10. Five metals and electrical equipment etc
Marks: Can heighten \ adds long \ to broaden
Specification
Max riveting diameter 9MM ( solid steel rivet )
Max riveting pressure 14KN
Stroke Length Range 30MM
Distance between the end of the tool andthe table surface 680MM
Distance form the centre of main shart to the face of upright 125MM
Motive force Hydraulic
Area of the table surface 360MM× 290MM
Power 0.92Kw
Overall dimensions 700MM× 500MM× 1417MM
Net weight 250Kg
Wuhan rivet machinery Co., Ltd is renowned manufacturer of riveting machine in China and we are specialized on this fields to manufacturing, research and developing every kinds of machine riveting machine more than decades, and products including pneumatic riveting machine, hydraulic riveting machine, radial riveting machine orbital machine, rivetless riveting machine, automatic riveting machine, self-piercing riveting machine, hydraulic power pack and extend to every kinds of aluminum ladder making machine, it has covering all metal processing fields and even including plastic field's product.
We follow ethical business policies and maintain strict quality standards in the fabrication of our world-class gamut of machinery and components. We always strive to satisfy our clients in order to garner multiple clients and maintain good relation with the old ones offering exemplary designs and unconditional services. We offer our clients the best range ever by manufacturing our entire gamut in adherence to their demands and specifications and also package consignments as per their order. Being a one-stop shop efficient in meeting the different industry specific needs, we successfully edge over our competitors with our expertise in international trade and distribution network.
We ensure stringent quality checking and measurements at every stage of production works and are driven by our quality policy. We maintain quality standards in our business policy as well as our range. Right from the procurement of our product to the final dispatch, we perform stringent quality control techniques on every stage in order to ensure quality and accuracy of our multitude of machinery and equipments.
Our team of quality controllers ensures that the exclusive range offered by us renders maximum benefit to our esteemed customers. They check our range on the basis of the following parameters
Durability
Tolerance
Dimensional accuracy
Performance
Temperature and heat resistance
Easy installation and operation
Maintenance
Why us?
We have successfully positioned an unrivaled status in the market and achieved wide acclaim of our esteemed customers owing to the following attributes:
Unmatched quality machinery and components
Pool of talented and dedicated professionals
State-of-the-art manufacturing unit
Innovative designs
Credible services
Ethical business practices
Timely delivery
Customized solutions
