| Prod Model: |
JM16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Machine Tool&Accessories |
Product Description

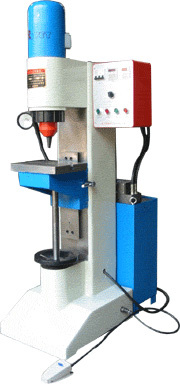

JM16 is suitable for process the bigger diameter rivet, and is a kind of medium-sized vertical hydraulic riveting machine. This machine is a kind of radial riveting machine, the machine adopted the advanced radial technology, and its movement path likes the 11 pieces of plum blossom's shape, and using the screw pole to ascend and descend the work bench (the head part is fixed), and the T- slot of bench can fix the clamping apparatus available, the center hole of bench and axis are coaxial, The one-way adjusting valve of liquid current is effectively controlled riveting speed.
The workbench is applied the screw pole to made it ascend and descend. The screw cap can tiny adjusted. The counter in the electricity control box can count the numbers of work piece which was been processed and time rely can control the riveting time effectively. It convenience to operating.
Specilication of JM16
Max riveting diameter. 16MM (solid steel rivet )
Max riveting pressure. 34KN
Stroke Length Range. 30MM
Distance from the riveting head to the surface of workbench. 200MM
Throat deep 195MM
Motive force. Hydraulic
Area of the table surface. 350MM× 250MM
Power 2.2Kw
Overall dimensions. 850MM× 600MM× 1650MM
Net weight. 590Kg
Wuhan rivet machinery Co., Ltd is renowned manufacturer of riveting machine in China and we are specialized on this fields to manufacturing, research and developing every kinds of machine riveting machine more than decades, and products including pneumatic riveting machine, hydraulic riveting machine, radial riveting machine orbital machine, rivetless riveting machine, automatic riveting machine, self-piercing riveting machine, hydraulic power pack and extend to every kinds of aluminum ladder making machine, it has covering all metal processing fields and even including plastic field's product.
We follow ethical business policies and maintain strict quality standards in the fabrication of our world-class gamut of machinery and components. We always strive to satisfy our clients in order to garner multiple clients and maintain good relation with the old ones offering exemplary designs and unconditional services. We offer our clients the best range ever by manufacturing our entire gamut in adherence to their demands and specifications and also package consignments as per their order. Being a one-stop shop efficient in meeting the different industry specific needs, we successfully edge over our competitors with our expertise in international trade and distribution network.
We ensure stringent quality checking and measurements at every stage of production works and are driven by our quality policy. We maintain quality standards in our business policy as well as our range. Right from the procurement of our product to the final dispatch, we perform stringent quality control techniques on every stage in order to ensure quality and accuracy of our multitude of machinery and equipments.
Our team of quality controllers ensures that the exclusive range offered by us renders maximum benefit to our esteemed customers. They check our range on the basis of the following parameters
Durability
Tolerance
Dimensional accuracy
Performance
Temperature and heat resistance
Easy installation and operation
Maintenance
Why us?
We have successfully positioned an unrivaled status in the market and achieved wide acclaim of our esteemed customers owing to the following attributes:
Unmatched quality machinery and components
Pool of talented and dedicated professionals
State-of-the-art manufacturing unit
Innovative designs
Credible services
Ethical business practices
Timely delivery
Customized solutions
