| Prod Model: |
(Z140, 170, 250) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Free Forging |
| Size: |
8500*1500*1400mm |
| Weight: |
7500kgs |
| Forming Steps: |
13steps+3 Steps for Reshaping |
| Processing Speed: |
10-14m/Min |
| Voltage: |
220V/60Hz/3pH |
| Forming Thickness: |
1.5-3.0mm |
| Lip Of Z Purline: |
15mm |
| Height Of Z Purline: |
35mm, 50mm |
| Width Of Z Purline: |
140mm, 170mm, 250mm |
Product Description

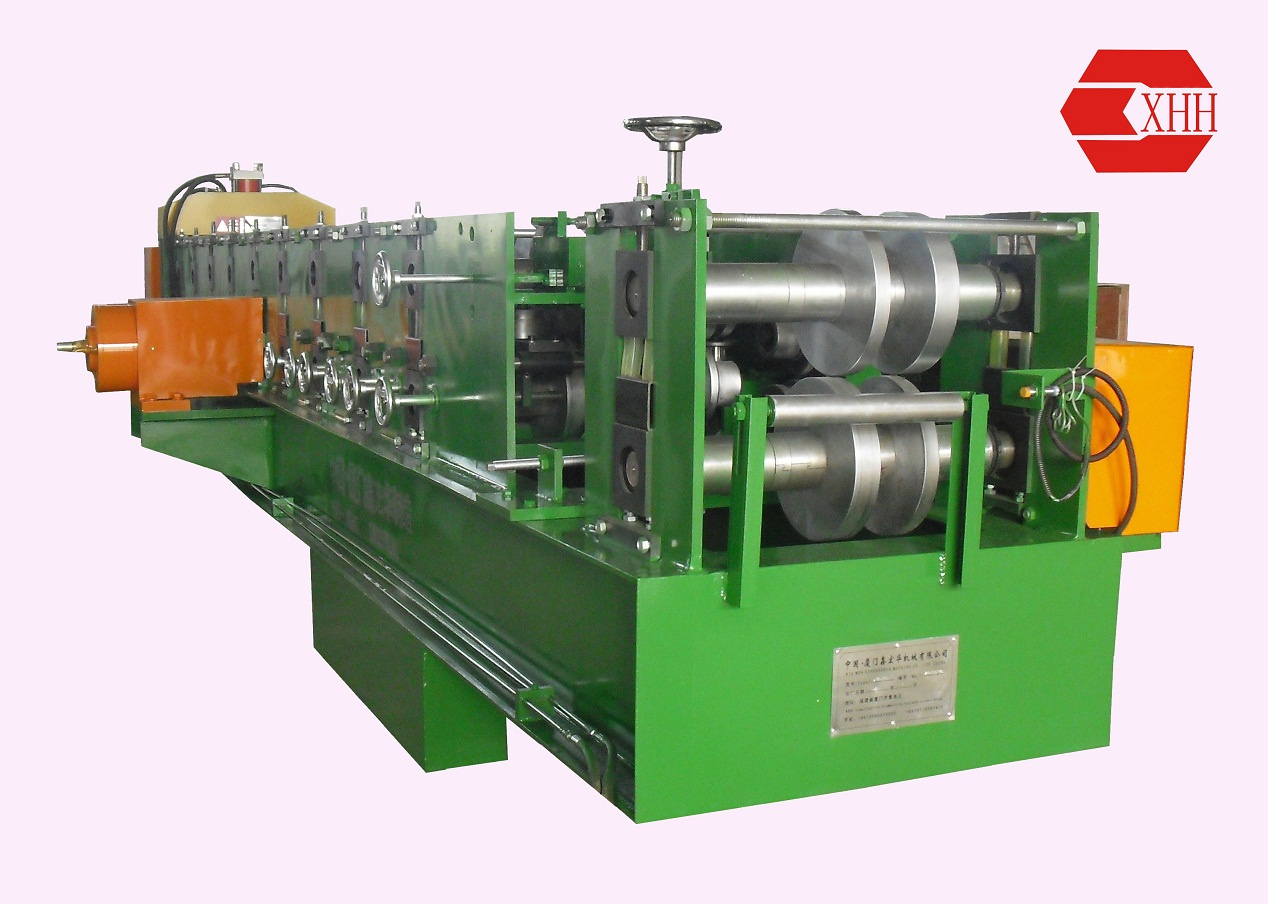

Detail informations of Z140, 170, 250 Automated Steel Z-shape Purline Machine, Purline Forming Machine with Automatic Adjustment Models and Z-shaped Purline Machine are as follows:
Main Accessories:
(1) Main Purline Forming Machine;
(2) 3 Tons Manual Uncoiler;
(3) Guide Device;
(4) Hydraulic System ( Total three oil cylinders, two for punching holes, one for pre- cutter)
(5) Hydraulic Motor;
(6) Hydraulic Pre-cutting Device
(7) PLC Computer Controlling SystemWith Touch Screen
( Brand: Delta from Taiwan );
(8) Pre-punching Holes Device( the buyer decide the size of punching holes );
(9) Reshaping Device;
(10) Run Out Table(4 PCS);
(11) Tools;
(12) Operation Manual.
Material normal galvanized building coils
Usage Purline for steel structure of building projects
Feature: One c purline machine can be automatically adjusted and produced any models of purlines from 80mm to 250mm in three minutes.
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
