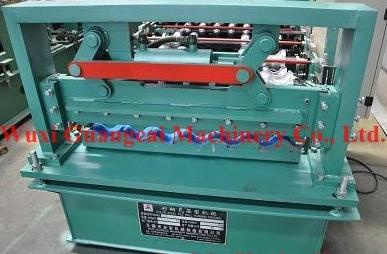

| Prod Model: |
GWC18-63.5-825 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Precise Forming: |
High Quality PLC Controls |
Product Description
Wuxi Guangcai Machinery Manufature Company Ltd. Specifies provide Roll forming machine, Roof/Wall panel machines, C/Z purlin machine, Floor decking machines, corrugated panel machine, Gutter machine, K-Span forming machine, Cable tray forming machine, Slitting machine, Decoiler, Steel tile forming machine, Door frame machine, Rack column machine, Guide rail machine, Guard rail machine, Roofing hanger machine, Ridge cape machine, Designing service, construction material, Steel Coil which is
1. Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
4. The line has the advantages of the single structure, beautiful interface, steady function and convenient operation.
Main power: 5.5KW
Forming speed: 10-15m/min
PLC controls
Manual decoiler_/feeding guiding_rollforming_hydraulic cutting_run out table
Main configuration
SR. Main configuration Qty Description
1. Decoiler 1
2. Straightener 1
3. Punching device 1 Pre-punch, hydraulic, each pair of holes in width and length direction, distance adjustable.
4. Cutting device 1 Hydraulic, PLC control
5. Rollformer 1 Chain transmission, Siemens motor with reducer, strengthen system, guide & feeding, rollers
6. Controlling system 1 Mitsubishi PLC, Omron Encoder, Panasonic touch screen, transducer.
7. Hydraulic system 1 PLC controls
8. Omron encoder 1
9. PLC 1
10. Runout table 1 Simple, 4 meters
Technical parameters:
1. Main Parameter:
1) Material to be rolled: Q235, pre-painted Steel coil or galvanized steel coil
2) Profile: According to the drawing (attached Page 2, third one)
3) Thickness of the material: 0.4-0.8mm
4) Coil width max: 1000mm
5) Inner diameter of the coil: 520mm, subject to buyer's requirement
6) Outer diameter of the coil: <=1800mm
7) Decoiler: 10000kg, manual expansion
8) Roll stands: 18
9) Main structure: Wall style entire steel structure
10) Driving system: Chain transmission
11) Material of the roller: 45# steel, be chromed.
12) Diameter of shaft: 70
13) Main power: 5.5KW
14) Main reducer: Cycloid pin
15) Cutting: Hydraulic cutting
16) Power of hydraulic station: 3KW
17) Material of blade: Cr12, heat treated HRC58-62
18) Measure: Encoder
19) Controller: PLC Mitsubishi, Inverter Panasonic, Touch screen Panasonic, Encoder Omron
20) Forming speed: 10-15m/min
21) Dimension: Abt. 10*1.5*1.4m
22) Weight: Abt. 9.8mt
Guangcai company is a group company which concentrates on roll forming equipment manufacturing, roll formed material processing, sales and service.
Our company was founded in 1995. After 15-year's development, group company is possessed of four branch companies currently: Wuxi Guangcai Machinery Manufacture Co., Ltd, Wuxi Suyun Floor Steel Panel Co., Ltd, Shanghai Suyun Constructional Steel Product Co., Ltd, Suzhou Guangcai Constructional Steel Products Co., Ltd.
Company is capable of manufacturing more than 20 series of roll forming equipments, such as color steel panel roll forming machine, glazed steel tile roll forming machine, floor deck roll forming machine, multi-functional complex panel roll forming machine, C, Z purline roll forming machine, integral carriage panel roll forming machine, steel silo roll forming machine, guard rail roll forming machine, big span forming machine, adjustable special profiled material roll forming machine, environment-protection material roll forming machine, cable tray roll forming machine. Our products have been exported to more than thirty countries and regions. At the same time, company made full use of technique advantages, established production base of roll formed panels in Wuxi and Shanghai. In market competition with numerous rivals, our products gained full acceptance and favor from a great deal of customers. For seizing development opportunities, our company is equipped with varied, efficient roll forming production lines, such as 21 types of floor deck roll forming machines, 45 types of color steel roll forming machines, and 5 types of universal adjustable special profiled panel forming machines, which can roll-form more complicated and demanding profiled panels.
Our company has a High-quality troop with great design and manufacture talent, including more than thirty senior and junior technicians, total staff more than four hundred.
Company mission: Honest-oriented, Quality first, Credibility first, After-sales service first. We will bring the best products and service to customer all over the world.
