Product Description

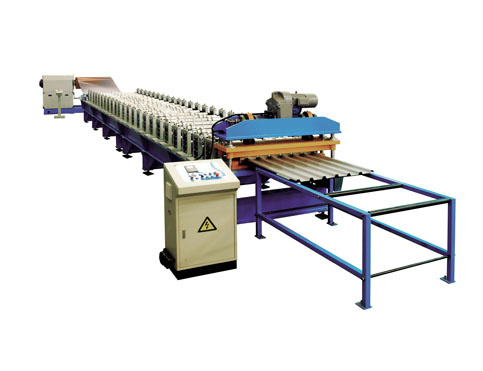

Roll forming machine's features:
The tile forming line includes in hydraulic decoiler, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system, two supporters.
Specifications:
1) Suitable raw material: 0.5 mm to 0.6mm colored steel sheet Q235
2) Main motor power: 4kW
3) Hydraulic power: 5.5kW
4) Hydraulic decoiler: 5 tons
5)Forming speed: 10 -12m/min
6) Control system: Mitsubishi PLC and inverter
7) Cutting die material: Cr12 mold steel, with quench treatment
8) Installation dimensions: 20 x 3.5 x 1.4m
9) Total weight: About 12, 000 kg
Hangzhou Bluegem Construction Building Materials Co., Ltd is specialized in designing, manufacturing and installation of steel structure with high technology, construction structure and maintenance series.
We have four companies as follows: Hangzhou Bluegem Construction Building materials Co., Ltd; Hangzhou Jiabao Steel Structure Co., Ltd; Tianjin Bluegem Steel Structure materials Co., Ltd and Hubei Bolai Steel Structure Co., Ltd.
We have floor deck series, light-keel/purlin series, colorful roof sheet and wall sheet series; Various alloyed metal plate series; Al-Mg-Mn and Titanium-zinc alloy roof series; Light-steel villa and so on. High quality products, attractive prices, excellent services as well as our responsibility are what we would like to provide to welcome our respectable customers from all over the world.
