Product Description

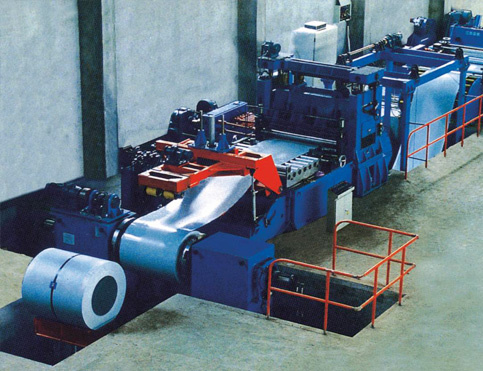

Slitting cut to length machine's features:
1) Suitable raw material: 380Mpa δ B ≤ 440 Mpa, cold rolled steel; Stainless steel; Prepainted steel; Acid washed plate;
2) Suitable coil thickness: δ = 0.5-1.0 mm
3) Suitable coil width: 1250 mm
4) Shearing accuracy: Width tolerance ± 0.05mm
5) Shearing speed: 0-30m/min
6) Decoiler capacity: 15T
7) Suitable coil internal diameter: φ 520mm toφ 620mm
8) Suitable coil external diameter: ≤ φ 1500 mm
9) Diameter of shearing: φ 205mm, 40Cr material
10) Slitting strips: 5 pieces
11) Shearing blade: φ 205× φ 350× 15
12) Shearing blade material: 9 CrSi
13) Hardness of shering blade: HRC58-60
14) Recoil internal diameter: φ 610mm
15) Suitable power: 380V/3pH/50Hz
16) The main electric components and vulnerable parts are in accordance with GB standard.
Cutting accuracy: Length tolerance 0.5mm with in 2m, diagonal tolerance 1.5 mm with in 2 m.
Hangzhou Bluegem Construction Building Materials Co., Ltd is specialized in designing, manufacturing and installation of steel structure with high technology, construction structure and maintenance series.
We have four companies as follows: Hangzhou Bluegem Construction Building materials Co., Ltd; Hangzhou Jiabao Steel Structure Co., Ltd; Tianjin Bluegem Steel Structure materials Co., Ltd and Hubei Bolai Steel Structure Co., Ltd.
We have floor deck series, light-keel/purlin series, colorful roof sheet and wall sheet series; Various alloyed metal plate series; Al-Mg-Mn and Titanium-zinc alloy roof series; Light-steel villa and so on. High quality products, attractive prices, excellent services as well as our responsibility are what we would like to provide to welcome our respectable customers from all over the world.
