| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling System: |
PLC |
| Forging Forming Method: |
Tire Mold Forging |
Product Description

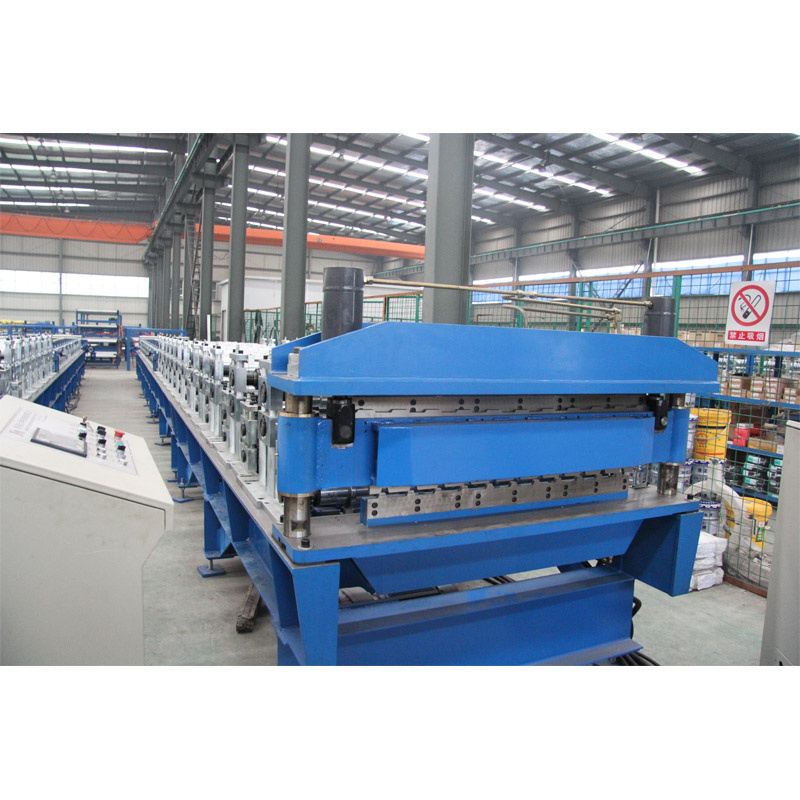

Roll Forming Machine
1. Brief
The large-span curving roof produced by HV-610 roll forming machine and HVW-610 curve-making machine is strong with high pitches. The joining type of the roof is self-lock, which makes it easy to install and safe with excellent water proof and storm resistance. The curving roof can directly be produced on worksite, effectively lowering the cost. The product is widely used on large-scale and MID-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on.
2. Technical parameters
1) Size: 15000mmx1300mmx1630mm
2) Total weight: About 12.500kg
3) Controlling system: PLC
4) Main motor power: 11 kw Hydraulic station power: 4 kw
5) Working speed: 10000-12000mm/min
6) Hydraulic pressure: 18-20Mpa
3. Components
1) uncoiler and its base
2) coil sheet guiding equipment
3)roll forming system
4)post-cutting equipment
5)hydraulic station
6) controlling system
7) panel supporter.
Hangzhou Roll Forming Machinery Co., Ltd., is established in 1996 as professional manufacturer of cold roll forming machine and other special industrial equipments. Through more than 15 years of professional expertise and continuous efforts in research, development and product improvement, by now is the major supplier of such equipment to the China metal sheet industries. We are also the main exporter of such equipment in China. We manufacture different kinds of metal sheet cold roll forming machine for producing following products. Such as Carbon steel pipe, Stainless steel pipe, Light gauge steel, Door frame, Roofing corrugated sheet, Roofing tile, Wall panel, Ceiling T-bar, Steel deck, Partition beam, and other various metal sheet building materials
We have the ability to solve the design and manufacture puzzles from stand-alone machine to the whole set to meet customers' requirements from all over the world.
With advanced technique system, strong production capacity, strict quality control and scientific management, we can provide various top quality products to meet the requirements of customers.
Insisting on the principles of "quality first, credit first", we have already established favorable relationships with many clients around the world.
We warmly welcome old and new clients from all over the world to visit our company and establish business relationships with us. We do believe our mutual cooperation will create a brilliant future.
