Product Description
JWC900
Specifications:

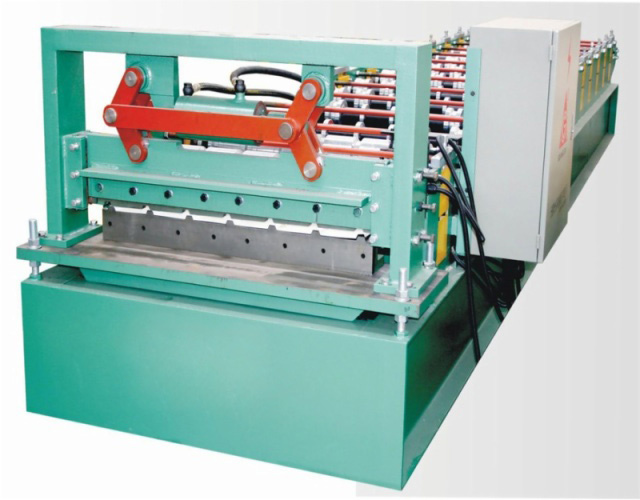

Part A. Cold roll forming machine
Thickness of forming sheet: 0.3 mm to 0.8 mm
Forming speed: 15~20 m/min.
Roll shaft dia: 75~95 mm in S45C.
Roll stands: SK2 with heat treatment & hard chrome coated.
Main motor: 10HP~15 HP hydraulic motor.
Complete with one set of tachometer for automatic production.
Attach with run out table x 5.
Control box: All of push button switches pilot lamps, emergency stop switch and in computer system with touch screen.
Part B. Mandrel expand type uncoiler:
Size of appearance: 2.90m(L)x1.28m(W)x1.73m(H)Approx
Coil stock-Inner dia: 400 mm to 520 mm (max 620 mm)
Outer dia: 1700 mm
Width: 1000/1250 mm max
Loading capacity: 5000 kgs/7500 kgs max
Machine weight: 1500/2080 kgw (Approx)
Main motor: 3 HP / 5 HP hydraulic motor.
Rotating speed: 20 m/min max.
Part C. Hydraulic Cutting Device:
Attached with one set of rear-cutter in SKD-11.
Attached with one set of pre-cutter in SKD-11.
Hydraulic cutting system is controlled by computer.
Features:
Professional designing for manufactures roofing & walling
Automatically continually manufactures high quality product with PLC.
Easy operation: Directly input the data on the touchable screen.
Customers decide the profile of products.
Saving time and cost owing to high speed running with hydraulic system.
One year warranty.
