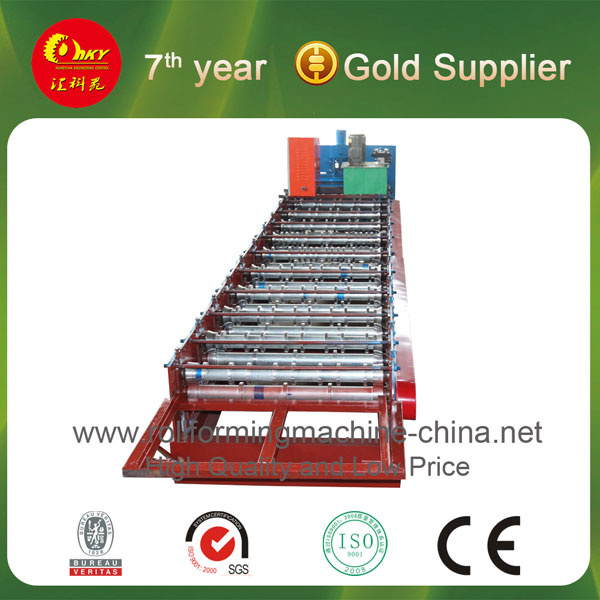

Roll Forming Machinery Making Panel (HKY)
| Price: |
US $ 18000-25000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HKY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Moter Power: |
7.5kw |
| Material Of Roller: |
45#Steel Hard Chrome Plating |
| Hydraulic Station Power: |
4kw |
| Hydralic Oil Pump: |
CB-E310 |
| Speed: |
8-12m |
| Spocket: |
P-25.4 |
| Yield Strength: |
32mpa |
| Thinckness: |
0.3mm-1mm |
| Diameter Of Principal Axis: |
80mm |
| Weight: |
4.2t |
| Forging Forming Method: |
Tire Mold Forging |
Product Description
· Brief introduction· · Place of origin : Hebei, China(Mainland)· Type: steel tile roll forming machinery· certification: CE:SGS· Quality system: ISO9001:2008· Port: XIN GANG· Payment terms: T/T · Minimum order quantity: 1 set· Control system: PLC· Life time :10 years· · PRODUCTS WARRANTY· · 12 months, and we will provide the technical support for the whole life of the equipment.· · USAGE AND FEATURE· · The machines are widely used in building the factory, hotel, and house and so on. · · This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers. · · TERMS · · 1. Production Time: within 45 days after received the payment in advance. · 2. Package: Export Standard package for container· 3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )· · 4. Validity: good for 30days· · REMARKS · · 1 .We can set the color according to your requirement.· 2. Within one year if any parts go broken we will send new ones to replace for free.· 3. If you want to learn more about the product please login our website or contract to us· · · SERVICE · · One years for free, after the warranty period. we will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem· · EXPORT MARKET · · Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. · · Components of whole set roll forming machinery:
1. De-coiler
2. Shearing Device
3. Forming System
4. Cutting Device
5. Run-out table
6. Electrical System and Control centerSet1
Technical Parameters
1. De-coiler
Manual Un-coiler
Width of raw material: 1250mm
Max Capacity: 8000kgs
Max out diameter of coil: 1600mm
Inner diameter of coil: 500-600mm
Manual feed with brake
2. Shearing Device
Shearing way: Manual
The material of blade: Cr12 with Heat treatment HRC60-62
3. Main Forming System
Feeding width: 915mm and 1200mm
Product width: 760mm and 988mm
Height of waves: 18mm
Thickness of sheet: 0.2 mm-1.0mm
Material: GI sheet coil, Colored sheet coil
Roller stations: 16rows
Material of Roller: C45 steel
Surface of Roller: Chrome plating
Diameter of main shaft: 80mm C45steel, modulation
Main Bearings: 60211
Power of main motor: 5.5kw
Forming Speed: 0-15m/min
4. Cutting device
Oil pump station 1set
Motor power of Oil pump station: 4kw
Forced air cooling device available
Cutting mould: 1set
Material of blade: CR12 with heat treatment HRC60-62
Pressure of cutting: 15tons
5. Run-out Table
Frame: Angle bar or steel tube welded
Length: 3m
Quantity: 1 pc
6. Electrical System
PLC and HMI touch Screen (Taiwan Delta or Siemens)
Automatic length measurement
Automatic quantity measurement
Length measurement: Rotary Encoder
Over current protection for control system, aviation plugs
Cutting off type: Paused to cut, moving automatically after cutting.
Power: 380V 60Hz
We also can design and manufacture as per your request!
Jenny Yan
tel: 0086-317-3087243
fax: 0086-317-3087243
mobile: 0086-15503170278
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
